DCB SR Statistical Multiplexer
SR-04 SR-01 SR-01/DSU SR-08 SR-16 SR-24 SR-32 SR-V90 SR-08-EC SR-FR SR-DSU04 SR-DSU

 Statistical Multiplexer, 1 to 32 channel for Leased, ISDN, Frame Relay and Dial-up Lines

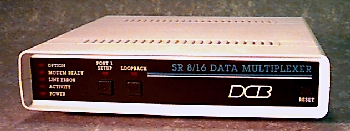

8/16/24/32 Port Model SR-08,
SR-16, SR-24, SR-32

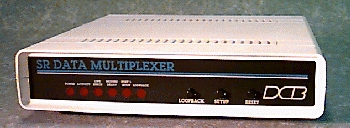

4 Port Model SR-04

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Port Specifications
Network Specifications
Operating Modes
Indicators (front panel)
Network Management Port
Network Management Port Commands
Physical/Electrical
Options

How to Order
APPLICATION

FEATURES

DESCRIPTION

The SR series statistical multiplexers concentrate 1,4, 8, 16, 24 or 32 asynchronous channels over a synchronous or asynchronous composite. "One Touch Dial" mode is included for ISDN or dial-up modem links.. With "One Touch", the SR uses a dial-up modem or ISDN link. At the touch of a single key (space bar or enter key), any terminal connected to the SR multiplexer initiates a call. When using ISDN, the SR is on line in just a few seconds. If the link is idle for a user settable time ranging from 1 minute to 99 minutes, the SR automatically disconnects the phone line, saving costs where ISDN charges are time metered.
All port parameters are set with an asynchronous terminal (or PC) connected to the network management port or port 1. Set-up procedures are menu driven and fully explained on screen. All configuration parameters are maintained through power outages.

The asynchronous ports can be individually set for speeds to 38.4 Kbps (57.6 Kbps on the SR-04). Hardware (CTS/Busy high or low) or software (Xon/Xoff even, odd, mark, space or transparent) flow control is also set on a port by port basis.

The SR multiplexer composite is synchronous or asynchronous full duplex lines either analog or digital. The composite can be run at speeds up to 128 Kbps sync, 57.6 Kbps async.

The network management port includes local and remote configuration commands. The Show Configuration Commands allow the system manager to view the configuration settings of both the local and remote SR Multiplexers. Network management features include port and composite loopbacks, capture of a remote or local port, send a test message to an individual local or remote port, set multiplexer ID for node identification and a built-in "data line monitor" which allows the monitoring of the transmit or receive lines at the local multiplexer. A unique feature of the SR multiplexers is the Copy Command. This command allows a trainer at the host site to "copy" any local or remote port to view exactly what the user is entering. This feature can save thousands of training dollars by eliminating travel expenses.

The SR multiplexer has a side panel access for firmware cartridge installation. This feature simplifies installation of upgrades for new features and functions.

The SR multiplexers are compatible with virtually all async terminal-printer/computer links. You can save thousands of dollars by concentrating your terminals on one line while delivering top performance. In addition, with features like the loopback, test message, ID, monitor and copy commands, you can take charge of your network like never before.
The single port SR multiplexer is quite useful for multi-drop and multi-point applications such as point-of-sale terminals, SCADA, and other machine control applications.
The internal modem is available in a V.90 version. With the internal modem, multiplexer management commands provide direct access to the modem, and provide a command string to be sent to the modem after every power on. These units can also be configured for the "one-touch" operation, whereby a link is dialed up by simply touching the space bar on ANY terminal connected to the multiplexer. The modem initialization command insures reliable modem operation. Using the internal modem removes many of the dial-up problems cause by unknown bargain-store quality modems.

SPECIFICATIONS
General
Asynchronous Statistical Multiplexing
1, 4, 8, 16, 24 or 32 channels
All ports can be 38,400 bps
Port Specifications
Data Format
1 Start bit
8 Data bits including parity if used
1 Stop bit
10 Bits total
Rates: 300, 1200, 1800, 2400, 4800, 9600, 19200, 38400,
(57600 on the SR-04) bps individually selectable per port
Interface: CCITT V.24, RS-232-D
Connectors: RJ-45 (8-wire)
Buffering: 64K dynamically allocated
Port Flow Control: Set on an individual port basis
Xon/Xoff
Clear to Send
Busy High
Busy Low

Network Specifications

Rates: Follows modem clock signals to 128 Kbps synchronous, 57.6 asynchronous
Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (8-wire)
Error Correction: Automatic retransmission
Network to modem/DSU cable included
Operating Modes
Normal on-line multiplexing
"One Touch Dial" mode
Network loopback
Indicators (front panel)
Power, Multiplexing, Receive Error, Modem Ready,
Option, Port 1 Setup, Loopback
Network Management Port
Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (8-wire)
Can be mapped to Port 1
Network Management Port to terminal cable included
Network Management Port Commands
Help Screen
Remote Test Loop
Monitor Transmit
Monitor Receive
Network Loopback
Flow Control Active
Set Time

LOCAL & REMOTE:
Show Configuration
Show Network
Configure Ports
Configure Network
Port Loopback
Device Type
Reset
Capture Port
Copy Port
Send Test Message
Activity Counters
Physical/Electrical
Power requirements: 120 VAC, 30-43 Watts, .25-.36 Amps
(Optional 12, 24, or 48 Vdc Power supplies available)
101/4" x 93/4" x 21/4" (8 or 16 channels)
101/4" x 93/4" x 41/2" (24 or 32 channels)
Options


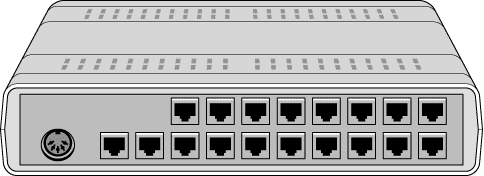

Rear view of 16 channel DCB SR Multiplexer

APPLICATION

How to Order
HOST or REMOTE:

SR-04 4 Port Host or Remote Multiplexer
SR-01 1 Port Asynchronous FRAD
SR-01/DSU 1 Port Asynchronous FRAD with built-in 56Kbps DSU
SR-08 8 Port Host or Remote Multiplexer
SR-16 16 Port Host or Remote Multiplexer
SR-24 24 Port Host or Remote Multiplexer
SR-32 32 Port Host or Remote Multiplexer
SR-V90 V.90 Internal Modem
SR-08-EC 8 Port expansion kit
SR-FR Frame Relay firmware
(Free when ordered with unit)
SR-DSU04 Integral 56Kbps DSU/CSU for SR-04
SR-DSU Integral 56Kbps DSU/CSU
(for 8 to 24 port units only)
RK-8/16 Rack mount for 8/16 port unit
RK-24/32 Rack mount for 24/32 port unit

Above Prices include Point-to-Point or Frame Relay firmware.

See Rack Mount Data Sheet for high density rack mounting options.
See Industrial DC Power Supply Data Sheet for 12, 24,and 48Vdc input power supply options.
