DC Input Power Supplies

Models to convert 12, 24, or 48 volts DC to voltages required by DCB equipment(+5, +12, -12 volts DC ) Works with most DCB products Compact size Can be used with other products that use the same DIN connector Sealed housing, NO FAN

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Connections
Electrical
Physical/

APPLICATION

HOW TO ORDER

FEATURES

• Models to convert 12, 24, or 48 volts DC to voltages required by DCB equipment(+5, +12, -12 volts DC )
• Works with most DCB products
• Compact size
• Can be used with other products that use the same DIN connector

DESCRIPTION

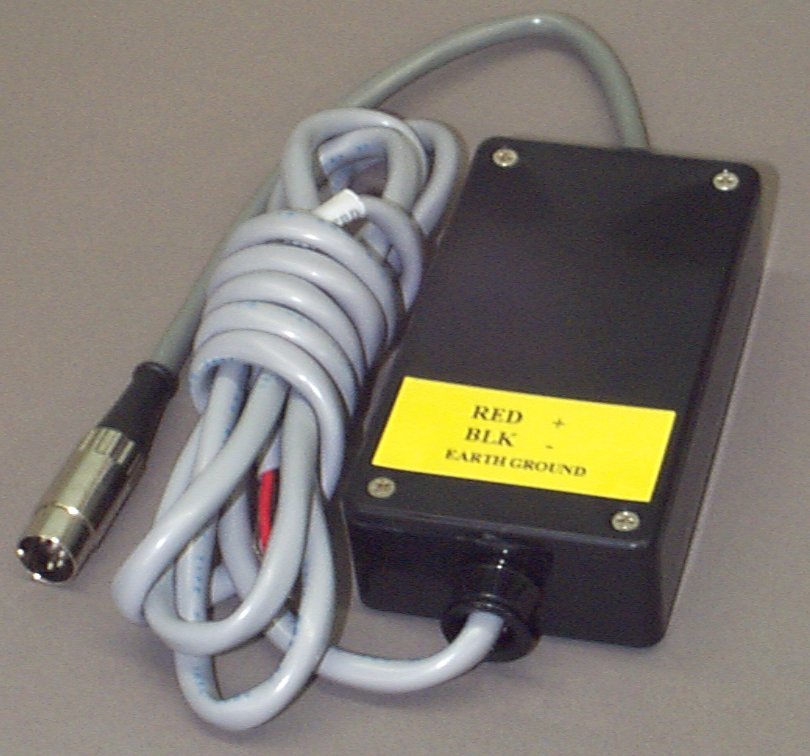

It is a sealed unit having no fan. Models are available having nominal input voltages of 12, 24, or 48 Vdc. Input voltage may be either polarity with respect to ground.

SPECIFICATIONS

General

• Models to convert 12, 24, or 48 volts DC to voltages required by DCB equipment(+5, +12, -12 volts DC )
• Provides up to 2.5 amps of +5, .310 amps of +12 and -12
• Temp range -40 to +90 C
• Sealed box, no fan

Electrical

• 48 Vdc Input model
  • Max Input Current Under 510 MA
  • Minimum Input Voltage 36 Vdc
  • Maximum Input Voltage 72 Vdc
• 24 Vdc Input model
  • Max Input Current Under 995 MA
  • Minimum Input Voltage 18 Vdc
  • Maximum Input Voltage 36 Vdc
• 12 Vdc Input model
  • Max Input Current Under 2160 MA
  • Minimum Input Voltage 9 Vdc
  • Maximum Input Voltage 18 Vdc

Connections

• Bare wire for terminating to DC source (Red = +V, Black = -V and earth ground)
• 5 pin DIN for +5, +12 and -12 volts to DCB products

Physical
