Verso / Verilink 3000 Series 2/4ABB IAD

Look to DCE for Verso / Verilink
. 17

3000 Series 2/4ABB IAD

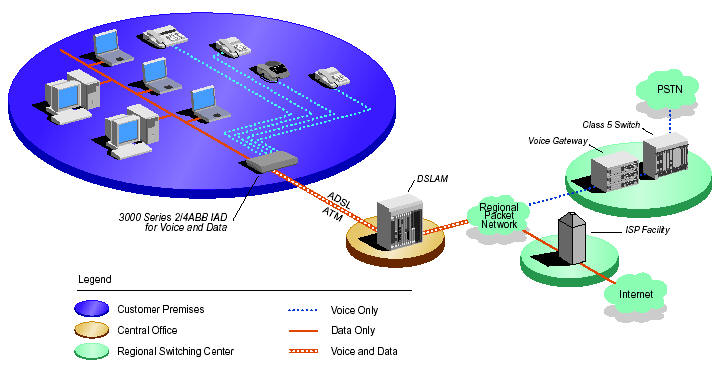

The 3000 Series ABB IAD supports 2 or 4 ISDN BRI S0 connections on RJ-45 connectors that can be used for telephony (ISDN phones), fax (G4), or data (ISDN BRI) services using its automatic switchover system between telephony and data. The IAD also provides full Layer 3 Routing, Layer 2 Bridging and combines software security for added versatility.

Highlights

• 2 or 4 x ISDN BRI Voice over DSL
• ELCP, CAS, CCS signaling
• ADSL G.dmt Annex B, G.Lite
• User-friendly webserver interface
• Simultaneous Data Routing over USB and Ethernet over ADSL
• QuickStart for easy set-up
• Toll-quality voice
• Complete routing and bridging

Specifications

• Function: Fixed-configuration IAD
• WAN Interface: ADSL Annex B, (G.DMT), (G.lite)
• WAN Protocols: ATM
• Ethernet Interfaces: 10/100 BaseT
• Routing: Default, Static, RIP1, RIP2
• Security: Stateful Inspection, Firewall Intrusion Detection,Denial Of Service protection, De-Militarized Zone, NAT/NAPT
• Management: SNMP
