FEATURES
- SRM-31A is an Asynchronous Short Range Modem
that operates full duplex over 2-wire unconditioned lines (twisted
pair) at selectable rates from 1.2 kbps to 115.2 kbps.
- SRM-31A uses I-DSL technology and 2B1Q line
coding. It provides an operating range of up to 8 km, independent of
the data rate. An adaptive equalizer provides noise immunity and high
performance, over mixed gauge or multi-pair cables. SRM-31A can pass
two control signals end-to-end with no data transmission interference.

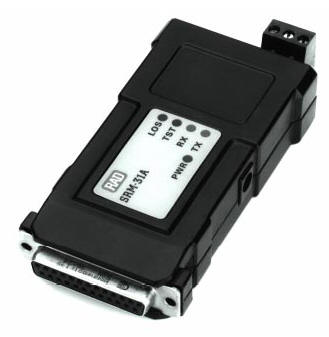

- SRM-31A is a miniature version of ASM-31.
External switches on the bottom of the unit enable easy configuration
of the product. Five LED indicators show the status of the unit. The
modem requires an external power source via an AC adapter (see
Ordering).
- SRM-31A can operate opposite ASM-31, ASMi-31,
and the HS-U module of Megaplex-2000 and Megaplex-2100. SRM-31A can be
configured remotely, and diagnostics can be activated from the other
end.
- SRM-31A features diagnostic capabilities that
include implementation of local and remote loopbacks.
|
SPECIFICATIONS
- Asynchronous
- 2-wire full duplex
- Transmission range up to 8 km
- I-DSL technology and 2B1Q line coding
- Operates opposite ASM-31, ASMi-31, and HS-U modules
of MP-2000 and MP-2100
- V.24/RS.232 DTE interface
- Diagnostic loops according to ITU V.54
- Selectable data rates:
1.2 kbps - 115.2 kbps
- LED indicators
- Configuration download option when working opposite
ASMi-31
SRM-31A/+
2-wire Short Range Async Modem
| + |
Specify power supply:
(Default is with no power supply)
115 for 115 VAC
230 for 230 VAC |
ORDERING
SRM-31A/115
SRM-31A/230

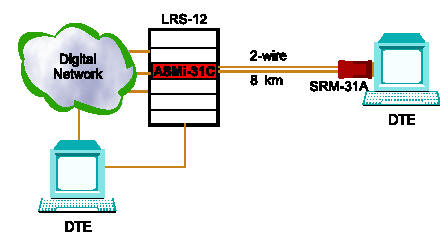

APPLICATIONS
|
