FEATURES
- MME is a miniature modem eliminator, which
replaces two synchronous modems by permitting direct port-to-port
connection.
- MME is the smallest modem eliminator available
in the market. It requires no AC supply connection, using the
ultra-low power from the standard RS-232/V.24 data and control
signals.
- MME generates the Receive and Transmit clocks
required for proper operation of the two synchronous DTEs, as well as
all the control signals necessary to emulate dial-up or dedicated
service.
- The delay between Request to Send and Clear to
Send can be independently set on either port, for 0, 6.6 or 53 msec.
- The Data Carrier Detect signal can either be
set constantly to ON, or used as a port-to-port "handshaking" signal
where RTS on one port is converted to DCD on the other port.
- Physical connection between MME and its
associated terminal and computer is via 25-pin RS-232 connectors,
either two male or two female.
|
SPECIFICATIONS
- Synchronous
- Selectable data rates up to 19.2 kbps
- Range of 30m/99 ft on each side
- No AC power required
- Easy to install and configure
- Miniature, lightweight
MME/M:
Miniature Modem Eliminator, male connectors
MME/F:
Miniature Modem Eliminator, female connectors
ORDERING
MME/F
MME/F/EXT
MME/M

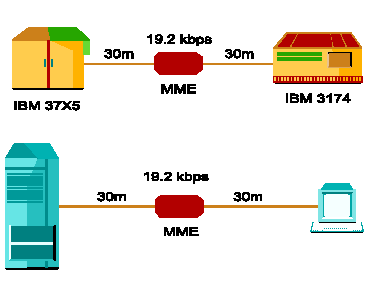

APPLICATIONS
|
