Patton Electronics 2192/USB
USB V.92/56-kbps Dial-up Modem
Model 2192/USB
USB V.92/56-kbps Dial-up Modem
The Patton 2192 USB modem provides access to the Internet or corporate host using V.92/56-kbps connections.
Features & Benefits
  • Full function V.92/V.90 56-kbps modem
  • USB connection for easy installation and removal
  • Windows plug and play

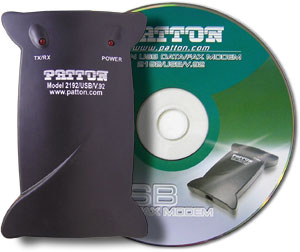

  • Compact in size--Same height as the installation CD-ROM!
  • No external power supply; draws power from PC
  • Supports V.92 Modem-on-Hold
  • Linux drivers available
Overview

Patton?s Model 2192/USB RasLink Dial-up modem provides a high performance V.92 modem connecting to any Windows or Linux platform using the standard USB interface. The 2192 family of RasLink modems can be used provide access to the corporate LAN/Intranet or to connect to the local ISP for Internet access. The modem supports rate adaptive speeds supporting 56-kbps V.92/V90 full-duplex communications. Full MODEM compliance is supported using all international and Bell standards with additional support provided for Group 3, Class 1 FAX with speeds of up to 14.4 kbps. The modem configuration software is fully AT command set compatible. When the PC is equipped with sound card, telephone answering machine (TAM) support is available through the microphone and speaker interface of the sound card.


Specifications
Interfaces USB 1.1 at 12 Mbps full speed, (1) RJ 11 port
Operating Systems Win98, Win2000, Win ME, Win XP
System Requirements Pentium base, 200 MHZ minimum, Free USB port, 20MB free hard disk space, Optional - sound card for voice features
Data Modes V.92, V.90, V.34bis, V.34, V.32bis, V.32, V.22bis, V.22 A/b
Fax Modes ITU-V.17, V.29, V.27ter and V.21 at 14.4, 12.0, 9.6, 7.2, 4.8 and 2.4 bps
Error Correction V.42 LAPM and MNP2-4
Data Compression V.44, V.42 bis and MNP-5
Dialing AT command set, Tone dialing
Power Powered via USB interface
Compliance Safety: RTTE Directive 99/5/EC/TBR 21, Environment FCC Part 15 Class B,CE Mark, FCC Part 68.
Environment Operating temperature: 0-40?C (32-104?F); Humidity: 5-90% non-condensing
Dimensions 0.8 H x 3.0 W x 4.5 L in. (20 H x 7.62 W x 20.5 L cm)
Weight 3.5 oz (99.0 g)
