GDC SC ADT
Asynchronous Data Transfer Device
End to End Connectivity Over Private IP Networks
SC ADT
Highlights
• Provides secure, high performance, low-cost transfer of async data between
sites utilizing IP networks.
• Scalable, individually configurable ports in 16- or 32- port increments.
• Acts as a terminal server to connect local craft devices, allowing management
from anywhere in the network.
• Provides alarm reporting via contact sensing, alarm traps and contact outputs
between network locations.
• Supports LAN connection to 10/100Base-T Ethernet.
• Supports automated configuration of multiple SC-ADT devices via ASCII batch
file upload/download.
• Low power consumption (6 watts maximum per slot).
• Designed for NEBS Level III Certification
Introduction
The SpectraComm Asynchronous Data Transfer device (SC-ADT) is designed primarily
for high density applications where asynchronous data transfer over private IP
networks is required. The NEBS-certified SC-ADT can be deployed anywhere in the
network where asynchronous devices, craft port equipment or contact relays are

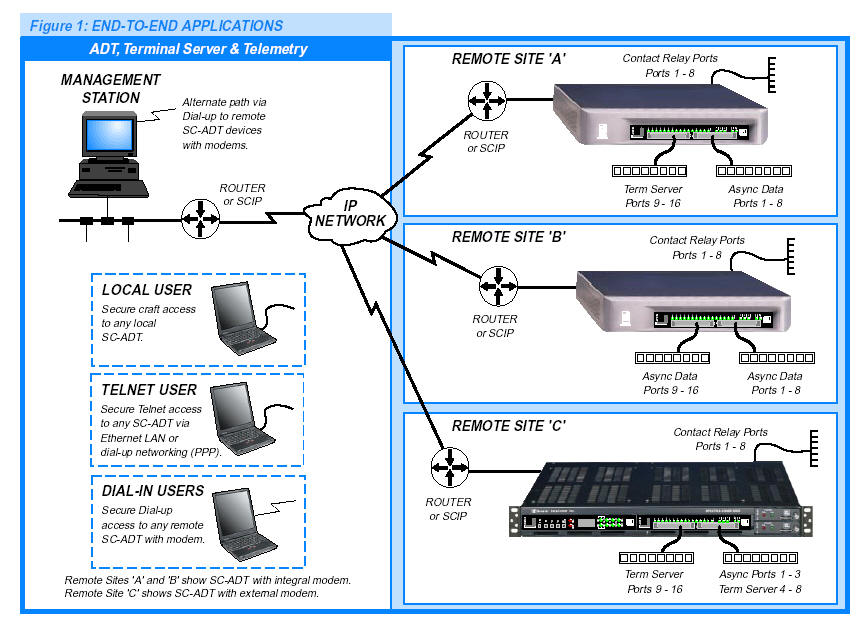

located. Figure 1 shows SC-ADT supporting multiple applications simultaneously:
• From the Management Station, all SC-ADT units are managed via Telnet, SNMP,
and HTTP. Password-protected local and dial-in access is also supported.
• At SC-ADT sites, some async ports are configured as terminal server ports,
some to exchange async data with other sites, some for external modem
connections.
• The rear panel DB-25 connector provides contact ports for alarm transfer and
traps.
For more information go to:
SpectraComm ADT PDF
