Verso / Verilink 8300 IAD
VoIP VoATM TDM SDSL
4 8 16 24 POTS Ports 10/100 Base-T Ethernet

8300 Series IAD

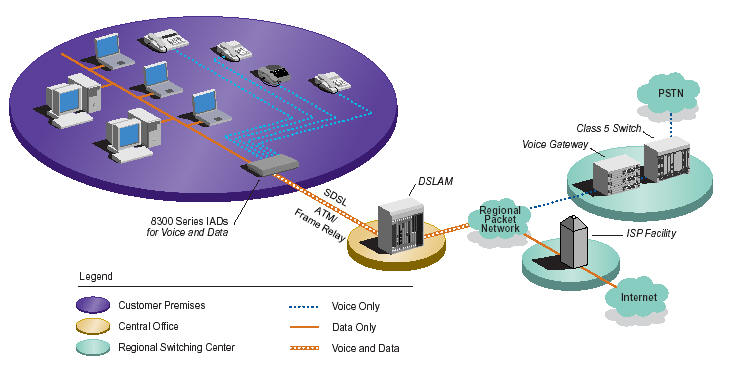

Verso / Verilink’s 8300 Series IAD family is leading the way in providing a highly interoperable, cost-effective bundled voice and data service solution. The 8300 family is uniquely designed for interoperability and is compatible today with the industry-leading DSLAM manufacturers. With the 8300 IAD family, small and medium-sized enterprises can now cost effectively take advantage of the advanced communications technologies previously available only to larger organizations.

The 8300 series consists of access products provided in two versions; a base version supporting VoATM only and an “s” version that supports VoATM and VoIP in one device. Both the base and “s” versions are available in models equipped with 4, 8, 16, or 24 derived voice lines and a 10/100 BaseT interface for high-speed data connections. Additionally the 8300 series delivers robust features such as routing, bridging, NAT and DHCP all in one unit. This allows service providers to provide peak performance at an affordable price.

Highlights

• Supports emerging VoIP specifications (SIP, MGCP) ‘s’ versions only
• Interoperable with Lucent Stinger™/TNT™, Nokia’s
• Speedlink™ System, Promatory IMAS™, AccessLan
• PacketLoop™, Accelerated Networks AN-3200, Copper Mountain CopperEdge™, and Paradyne GranDSLAM
• Seamless voice and high-speed data integration over SDSL
• Supports symmetrical data rates from 144 Kbps to 2.3 Mbps and multiple customer premises interfaces including POTS, 10/100BaseT Ethernet
• 4, 8, 16, or 24 Port POTS interface with Loop Start or Ground Start Toll-quality voice
• Dynamic bandwidth allocation and prioritization for voice and data traffic
• DHCP and NAT to support IP address management
• Firewall support: IP filtering
• 10/100 Ethernet LAN interface
• Compatible with WAN Network Transports including ATM and Frame Relay
• Dynamic and Static IP Routing and Bridging Capabilities
• Provides remotely managed migration path to VoIP

Specifications

• Function: 4, 8, 16, or 24 POTS FXS ports, Routing & Bridging, integral firewall
• WAN Interface: SDSL
• WAN Protocols: ATM, Frame Relay
• Ethernet Interfaces: 10/100 BaseT
• Routing: RIP 1, RIP 2, ICMP for IP Packet Processing
• Security: IP Filtering
• Management: SNMP, Telnet, TFTP
