A DSU/CSU for Connecting DTE Equipment to High-Bandwidth Digital Service

Features

• Supports T1/Fractional T1 (FT1), 64K, 56K, or sub-rate digital service

• Provides single-rate or multi-rate support for synchronous and asynchronous equipment

• Configures easily with DIP switches or a terminal or PC

• Includes built-in diagnostics

• Conforms with AT&T® and ANSI standards

• Includes external and rackmount models

• Provides a V.35 interface (all models) and a RS-232C/D interface (some models)

• Includes one 115v AC, 50/60 Hz power supply

• Two-year warranty

Applications

Point-to-Point Connectivity.  Connect two sites over a DDS or T1 / FT1 line.

Local Area Data Set (LADS)/Short-Haul Modem.  Eliminate DDS or T1 / FT1 line charges by connecting two MultiDSUs that are up to nine miles apart over your own line (distance impacted by desired speed, gauge of wire, and other external factors).

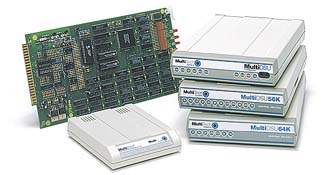

MultiDSU Family Highlights

Competitively Priced.  The MultiDSU family has been streamlined to provide the most important DSU features, while eliminating costly extras you'll never use. This means Multi-Tech DSUs are competitively priced, easy-to-use, yet highly reliable.

Easy to Setup and Maintain.  The MultiDSU family installs easily, and once installed requires little to no maintenance. You simply plug the line service and DTE equipment into the MultiDSU, configure with dip switches or terminal, and you're up and running. And when necessary, built-in test capabilities let you quickly troubleshoot line problems.

Cost-Effective.  Manage high-speed connectivity costs with the right MultiDSU and line service. In limited use applications, a 56K MultiDSU and switched 56K digital dial-up service are ideal. You pay a low monthly fee and only for the time used. To provide 24-hour on-line service, use a 56K or 64K MultiDSU and Digital Data Service (DDS) for up to 56K or 64K Clear Channel® dedicated service over a 4-wire line. For data intensive applications, like video conferencing and LAN-to-LAN routing, a T1 MultiDSU and T1 line provide dedicated 1.544M service.

T1 MultiDSU

The T1 MultiDSU is a low-cost, full-featured DSU/CSU that provides access to digital networks at T1 / FT1 speeds. It provides access to traditional dedicated point-to-point T1 services, Frame Relay, SMDS, and ATM services. The T1 MultiDSU is ideal for LAN-to-LAN connection, Frame Relay, and video conferencing applications.

64K MultiDSU

The 64K DSU combines the flexibility of an RS-232 or V.35 DTE interface with 56K dedicated, 56 switched, 4-wire, or 64K DDS line connectivity.

Multi-Rate 56K MultiDSU

This flexible multi-rate 56K DSU supports synchronous and asynchronous equipment. The rackmount or external model is ideal for 56K or sub-rate digital service.

Single-Rate 56K MultiDSU

The single-rate 56K DSU is a cost-effective solution to terminate DDS services.

Other Multi-Tech Solutions and Services

• Single-Source Vendor.  Multi-Tech offers a complete line of communication solutions, including remote access servers, Internet access servers, modems, and serial cards. The MultiDSUs are a perfect complement to applications using Multi-Tech MultiFRADs™ and RouterFinders™ that require a DSU. With 30 years of experience, you can count on Multi-Tech to provide complete end-to-end, reliable solutions.

Comprehensive Service and Support.  The Multi-Tech commitment to service means we provide a two-year product warranty and lifetime service that includes free telephone technical support and 24-hour web site support.

More Information.  Visit our web site at www.multitech.com to learn more about our communications solutions.

Specifications

•
  T1 DSU
  Network Service Rate: N × 56Kbps or N × 64K (N=1 to 24)
  DTE Rates: 56K-1.536M sync
  DTE Interface: V.35
  Connectors: One 34-pin, one RJ-48, & one RJ-45
  Physical Description: 6.0" w × 1.6" h × 9.0" d; 2 lbs 15.2 cm × 4.1 cm × 22.9 cm; 0.9 kg

  64K DSU
  Network Service Rate: 56K & 64K DTE Rates: 9.6K, 19.2K, 56K, & 64K sync; 9.6K, 19.2K, 38.4K, & 57.6K async
  DTE Interface: RS-232C/D and V.35
  Connectors: One DB25F, one 34-pin, & one RJ-48S
  Physical Description: 6.2" w × 1.4" h × 9.0" d; 2 lbs 15.6 cm × 3.5 cm × 22.9 cm; 0.9 kg

  Multi-Rate 56K DSU
  Network Service Rate: 2.4K, 4.8K, 9.6K, 19.2K, & 56K
  DTE Rates: 2.4K, 4.8K, 9.6K, 19.2K, & 56K sync; 2.4K, 4.8K, 9.6K, & 19.2K async
  DTE Interface: RS-232C/D and V.35
  Connectors: One DB25F, one 34-pin (stand alone DSU), & one RJ-48S
  External DSU Physical Description: 6.2" w × 1.4" h × 9.0" d; 2 lbs 15.6 cm × 3.5 cm × 22.9 cm; 0.9 kg
  Rackmount DSU Physical Description: 5.5" w × 0.9" h × 10.5" d; 1.5 lbs 14.0 cm × 2.2 cm × 26.7 cm; 0.7 kg

  Single-Rate 56K DSU
  Network Interface Line Rate: 56K DTE Rates: 56K sync
  DTE Interface: RS-232C/D or V.35
  Connectors: One DB25F & one RJ-48S
  Physical Description: 4.3" w × 1.0" h × 5.6" d; 8 oz 10.8 cm × 2.5 cm × 14.2 cm; 224 g

  All MultiDSUs
  Power: 115v AC, 50/60 Hz
  Operating Temperature: 32-120°F (0-40°C)
  Relative Humidity: 0-95% noncondensing
  Approvals: FCC Part 15A & 68, UL, IC CS03, & CUL
