Patton
EnviroNET?
Ethernet Extenders
Ethernet Extenders
Extensive range of environmentally hardened and extended temperature solutions for extending Ethernet connections at distances up to 8 km over phone-grade twisted-pair!
EnviroNET? Ethernet Extenders provide transparent extension of your 10/100 Ethernet LANs at distances up to 8 km over a single twisted pair or line rates up to 50 Mbps! EnviroNET Ethernet Extenders operate at line rates from 192 kbps to 50 Mbps depending on the model selected.

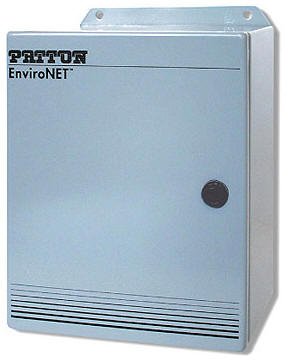

EnviroNET? Ethernet Extenders are housed in a NEMA 4 enclosure and operate in extreme temperatures, ranging from -40 to 85?C. EnviroNET Ethernet Extenders are the ideal solution for extending or providing Ethernet terminations to locations where harsh environmental elements such as heating, cooling, dust, and moisture cannot be controlled.
EnviroNET? Ethernet Extender applications include closets, ceilings, industrial automation, roadside cabinets, and various outdoor installations such as security and transportation access/control/surveillance. All EnviroNET Ethernet Extenders offer multiple line rate options to ensure the highest possible data rate is achieved over various lengths and types of copper wire and environments.
The Patton EnviroNET Ethernet Extender offers a reliable and robust
solutions for connecting peered 10/100Base-T Ethernet LANs; reaching
remote PCs and equipment; or delivering last-mile ISP services?at line
rates up to 50 Mbps! Patton?s EnviroNET allows the Ethernet Extenders to
operate under harsh temperatures (-40 to 85?C) and resist various
environmental elements such as dust, rain, snow, sleet, etc. Just
co-locate an EnviroNET Ethernet Extender at any outdoor data acquisition
location and pair it up with an equivalent Patton Ethernet Extender
inside the building.
*Indoor desktop option also available!
Ethernet Extenders
Extensive range of environmentally hardened and extended temperature solutions for extending Ethernet connections at distances up to 8 km over phone-grade twisted-pair!
-
Ethernet Extension?Extends 10/100Base-TX Ethernet at distances up to 8km over 2-wire 24 AWG unconditioned lines.
-
Extended Temperature -40 to 85?C?Operates in environments that do not have heating or cooling options.
-
NEMA 4 Case?Protection against elements such as dirt, rain, sleet, snow, dust, and the external formation of ice on the enclosure.
-
Auto-sensing Full-Duplex Ethernet?Auto 10 or 100Base-TX and full or half-duplex Ethernet operation.
-
Transparent LAN Bridging?Passes higher layer protocols and supports 802.1Q VLAN tagging.
EnviroNET? Ethernet Extenders provide transparent extension of your 10/100 Ethernet LANs at distances up to 8 km over a single twisted pair or line rates up to 50 Mbps! EnviroNET Ethernet Extenders operate at line rates from 192 kbps to 50 Mbps depending on the model selected.
EnviroNET? Ethernet Extenders are housed in a NEMA 4 enclosure and operate in extreme temperatures, ranging from -40 to 85?C. EnviroNET Ethernet Extenders are the ideal solution for extending or providing Ethernet terminations to locations where harsh environmental elements such as heating, cooling, dust, and moisture cannot be controlled.
EnviroNET? Ethernet Extender applications include closets, ceilings, industrial automation, roadside cabinets, and various outdoor installations such as security and transportation access/control/surveillance. All EnviroNET Ethernet Extenders offer multiple line rate options to ensure the highest possible data rate is achieved over various lengths and types of copper wire and environments.
|
Model #
|
Std. Indoor Pair
|
Temperature
|
Case Rating
|
Media Type
|
Max Line Rate
|
Max Distance
|
|---|---|---|---|---|---|---|
|
ET2172/R
|
2172/l
|
-40 to 85?C
|
NEMA 4
|
2-Wire Twisted Pair
|
50 Mbps
|
2.1 km (1.3 miles)
|
|
EH2172/R
|
2172/L
|
-0 to 50 ?C
|
NEMA 4
|
2-Wire Twisted Pair
|
50 Mbps
|
2.1 km (1.3 miles)
|
|
ET2168/R
|
2168/L
|
-40 to 85?C
|
NEMA 4
|
2-Wire Twisted Pair
|
16 Mbps
|
1.2 km (4,000 feet)
|
|
EH2168/R
|
2168/L
|
-0 to 50 ?C
|
NEMA 4
|
2-Wire Twisted Pair
|
16 Mbps
|
1.2 km (4,000 feet)
|
|
ET2157/R
|
2157/R
|
-40 to 85?C
|
NEMA 4
|
2-Wire Twisted Pair
|
4.6 Mbps
|
8 km (5 miles)
|
|
EH2157/R
|
2157/R
|
-0 to 50 ?C
|
NEMA 4
|
2-Wire Twisted Pair
|
4.6 Mbps
|
8 km (5 miles)
|
|
ET2156/R
|
2156/L
|
-40 to 85?C
|
NEMA 4
|
2-Wire Twisted Pair
|
2.3 Mbps
|
8 km (5 miles)
|
|
EH2156/R
|
2156/L
|
-0 to 50 ?C
|
NEMA 4
|
2-Wire Twisted Pair
|
2.3 Mbps
|
8 km (5 miles)
|
*Indoor desktop option also available!
| General Product Specifications | |
| ET Extended Temperature Product |
Operating Temperature: -40 to 85?C (-40 to 185? F) Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.) Weight: 3.86 kg (8.5 lbs) |
| EC Extended Temperature Product |
Operating Temperature: 0 to 85?C (32 to 185? F) Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.) Weight: 3.86 kg (8.5 lbs) |
| EH Environmentally Enhanced Product |
Operating Temperature: 0 to 50?C (32 to 122?F) Dimensions: 203 L x 114 W x 292 H mm (8.0 L x 4.5 W x 11.5 H in.) Weight: 3.86 kg (8.5 lbs) |
| ET2168/R/UI | EnviroNET extended temp Ethernet extender 16Mbps; 100-220VAC (-40 to 85C) |
| EHA2168/R/UI | EnviroNET environmentally hardened Ethernet extender16Mbps; 100-220VAC (0 to 50C) |
| EHA2172/L/UI | EnviroNET environmentally hardened Ethernet extender 50Mbps (local); UI (0 to 50C); NEMA3 |
