LTE3-1 - IoT 10 Mbps CAT1 LTE Cube Ethernet Gateway
 |
 |
The LTE3-1 was engineered specifically for the small size, low cost, and low power requirements of the IoT & M2M applications that are booming across the globe. The LTE3-1 provides robust and reliable CAT1 LTE connections with speeds of up to 10 Mbps. The LTE3-1 features 10/100 Ethernet, optional 802.11b/g/n WIFI, and tunneling capabilities all while retaining ultra low power consumption.
SPECIFICATIONS
|
Supported Bands North America / AT&T / T-Mobile
Verizon |
LTE CAT1: Bands 2,4,5,12 UMTS/HSPA: Bands 2,5 LTE CAT1: Bands 4,13 |
|
Cellular Data Features*
*Module Standalone Laboratory Performance |
LTE CAT1: DL Up to 10Mbps, UL Up to 5Mbps |
|
WIFI Features (WIFI Optional) |
802.11b/g/n (2.4 GHz) |
|
WiFi Performance (WIFI Optional) |
Rate Mode Tx (dBm) Rx (dBm)_ 1 Mbps b 30 -97 ± 1 11 Mbps b 30 -92 ± 1 6 Mbps g 30 -94 ± 1 54 Mbps g 26 -75 ± 1 MCS0 n (HT20) 30 -96 ± 1 MCS7 n (HT20) 26 -75 ± 1 MCS0 n (HT40) 30 -94 ± 1 MCS7 n (HT40) 26 -73 ± 1 |
|
|
|
|
|
|
|
Ethernet |
10/100 BaseT, Auto - MDI/X IEEE 802.3 |
|
|
|
|
USB |
USB 2.0 USB (Device) |
|
|
|
|
SMS |
SMS to/from Ethernet via Telnet SMS Alerts SMS Remote Reboots |
|
|
|
|
Carrier Connection |
ICMP Keep Alive, DDNS |
|
|
IPv4, IPv6, TCP, UDP, TCP/IP, ARP, ICMP, DHCP, HTTP, SNMP, FTP, DNS, Modbus Slave (TCP), MQTT |
|
Network Protocols |
|
|
Security |
VPN, IPSec with IKE/ISAKMP; Multiple tun- nel support (16); 3DES and up to 256-bit AES Encryption, Site to Site Tunneling, L2TP, Open VPN), GRE, HTTPS, RADIUS |
|
Firewall |
NAT, NAT-T VPN tunneling, Port forwarding, VPN/GRE pass-through; Access control lists (IP/MAC filtering), Data origin / integrity Au- thentication, DMZ |
|
Management |
Telnet, WebUI, SNMP V1/2/3, Wireless Up- grade (HTTP/FTP), RADIUS authentication, AT Command Interface (Telnet), Microhard NMS Support, Data Usage Alerts, SSH |
|
Diagnostics |
RSSI, Ec/No, Temperature, Remote diag- nostics, Watchdog, UDP Event Reporting, SMS Alerts, Netflow |
|
Current Consumption (@12VDC) |
Typical: 40mA ~ 120mA |
|
Input Voltage |
7 - 30VDC PoE (Passive, Max 24V) USB Powered (5V, 1.5A) |
|
|
|
|

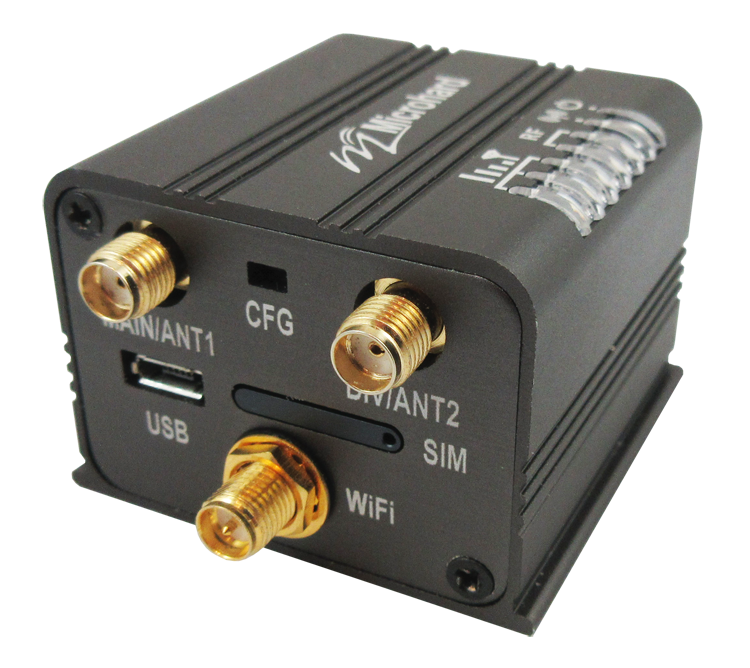

Connectors: Antenna Data
USB SIM |
2x SMA Female (Main, Diversity) RJ-45 (Ethernet) 4 PIN Interlock (Vin) Micro-AB Nano (4FF) 1.8 / 3.0V |
|
Environmental Operating Temperature
Humidity |
-40oC to +85oC -40oF to +185oF 5-95%, non-condensing |
|
Weight |
Approx. 95 grams |
|
Dimensions |
Approx. 1.75” x 1.75” x 1.35” (45mm x 45mm x 35mm) |
|
Approvals |
FCC/IC PTCRB Carrier Specific Approvals |
ORDERING
| Part # | Description |
| CA-MHK119130 | Microhard CUBE CAT1 AT1 W/ WIFI - LTE Category M1/NB-IoT Gateway |
| CA-MHK119110 | Microhard CUBE CAT1 AT1 W/O WIFI - LTE Category M1/NB-IoT Gateway |
| CA-MHK119230 | Microhard CUBE CAT1 VZ1 W/ WIFI - LTE Category M1/NB-IoT Gateway |
| CA-MHK119210 | Microhard CUBE CAT1 VZ1 W/O WIFI - LTE Category M1/NB-IoT Gateway |
