Draytek
Vigor 2950 VPN Router
Dual WAN Broadband
Security Router
Vigor 2950 , Vigor 2950i,
Vigor 2950G, Vigor 2950Gi
Draytek Vigor 2950 Dual WAN Broadband
Security VPN Router
The DrayTek Vigor2950 series are Broadband Security VPN Routers with a Dual-WAN interface. The Draytek Vigor 2950GG provides policy-based load-balancing, fail-over and BoD ( Bandwidth on Demand ) , it also integrates IP layer QoS, and NAT session/bandwidth management to help users control and allocate bandwidth on network.
SSL VPN Application
Without the necessity of installing VPN client on individual PC, the Secure Socket Layer (SSL) virtual private network (VPN) facility lets remote workers connect to the office network at any one time. SSL is supported by standard web browsers such as FireFox and IE. For users of small offices and teleworkers who need to access enterprise internal applications, file server and file sharing, DrayTek Vigor2950G security router series allow up to 50 concurrent SSL sessions.
Firewall & VPN Application
By adopting hardware-based VPN platforms, hardware encryption of AES/DES/3DES and hardware key hash of SHA-1/MD5, the router increases the VPN performance greatly and offers several protocols ( such as IPSec/PPTP/L2TP ) with support for up to 200 VPN tunnels.
The object-oriented design used in SPI ( Stateful Packet Inspection ) firewall allows users to set firewall policies with ease. CSM ( Content Security Management ) enables users to control and manage IM (Instant Messenger) and P2P (Peer to Peer) application more efficiently than before. Also note that the Dos/DDoS prevention and URL/Web content filter strengthen the security outside and inside the network.
VPN Trunk Management
It is a backup mechanism which can set multiple VPN tunnels as backup tunnel. It can assure the network connection not to be cut off due to network environment blocked by any reason.
VPN trunk includes four features - VPN Backup, VPN load balance, GRE over IPSec, and Binding tunnel policy.
Dual-WAN
The DrayTek Vigor2950 series are Broadband Security VPN Routers with a Dual-WAN interface. The Draytek Vigor 2950GG provides policy-based load-balancing, fail-over and BoD ( Bandwidth on Demand ) , it also integrates IP layer QoS, and NAT session/bandwidth management to help users control and allocate bandwidth on network.
Dual
WAN Application
The Dual WAN functionality allows users to access Internet and combine
the bandwidth of the WAN ports to speed up the transmission through the
network.
Each WAN port can connect to different ISPs, even
if the ISPs use different technology to provide telecommunication
service (such as DSL, Cable, etc.). If any connection
problems occurred on one of the ISP connections, all the traffic will be
guided and switched to the normal communication port for proper
operation.
SSL VPN Application
Without the necessity of installing VPN client on individual PC, the Secure Socket Layer (SSL) virtual private network (VPN) facility lets remote workers connect to the office network at any one time. SSL is supported by standard web browsers such as FireFox and IE. For users of small offices and teleworkers who need to access enterprise internal applications, file server and file sharing, DrayTek Vigor2950G security router series allow up to 50 concurrent SSL sessions.
Firewall & VPN Application
By adopting hardware-based VPN platforms, hardware encryption of AES/DES/3DES and hardware key hash of SHA-1/MD5, the router increases the VPN performance greatly and offers several protocols ( such as IPSec/PPTP/L2TP ) with support for up to 200 VPN tunnels.
The object-oriented design used in SPI ( Stateful Packet Inspection ) firewall allows users to set firewall policies with ease. CSM ( Content Security Management ) enables users to control and manage IM (Instant Messenger) and P2P (Peer to Peer) application more efficiently than before. Also note that the Dos/DDoS prevention and URL/Web content filter strengthen the security outside and inside the network.
VPN Trunk Management
It is a backup mechanism which can set multiple VPN tunnels as backup tunnel. It can assure the network connection not to be cut off due to network environment blocked by any reason.
VPN trunk includes four features - VPN Backup, VPN load balance, GRE over IPSec, and Binding tunnel policy.

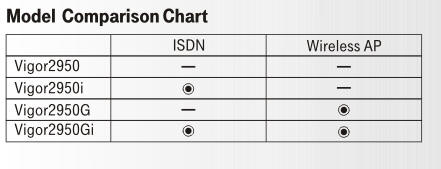

Vigor 2950 , Vigor 2950i
Vigor 2950G Vigor 2950Gi
Dual-WAN
- Outbound Policy-Based Load-Balance
- BoD (Bandwidth on Demand)
- WAN Connection Fail-over
- Up to 50 SSL VPN Tunnels
- SSL Web Proxy
- DHCP Client
- Static IP
- PPPoE
- PPTP
- BPA
- L2TP *
- SPI ( Stateful Packet Inspection )
- CSM (Content Security Management) for IM/P2P Application
- Multi-NAT, DMZ Host, Port-Redirection/Open Port
- Policy-Based IP Packet Filter
- DoS/DDoS Protection
- IP Address Anti-Spoofing
- E-Mail Alert and logging via Syslog
- Bind IP to MAC Address
- Up to 200 VPN Tunnels
- Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
- Encryption: AES, MPPE and Hardware-Based DES/3DES
- Authentication: Hardware-Based MD5, SHA-1
- IKE Authentication: Pre-shared Key and Digital Signature (X.509)
- LAN-to-LAN, Teleworker-to-LAN
- DHCP over IPSec
- NAT-Traversal (NAT-T)
- Dead Peer Detection (DPD)
- VPN Pass-Through
- Class-based Bandwidth Guarantee by User-Defined Traffic Categories
- DiffServ Code Point Classifying
- 4-level Priority for Each Direction (Inbound/Outbound)
- Bandwidth Borrowed
- Bandwidth/Session Limitation
- Web-Based User Interface (HTTP/HTTPS)
- Quick Start Wizard
- CLI (Command Line Interface) / Telnet/SSH*
- Administration Access Control
- Configuration Backup/Restore
- Built-in Diagnostic Function
- Firmware Upgrade via TFTP/FTP
- Logging via Syslog
- SNMP Management with MIB-II
- URL Keyword Blocking (White list and Black list)
- Java Applet, Cookies, Active X, Compressed / Executable / Multimedia File Blocking
- Web Content Filter (SurfControl)
- Time Schedule Control
- DHCP Client/Relay/Server
- Dynamic DNS
- NTP Client
- Call Scheduling
- RADIUS Client
- DNS Cache/Proxy
- UPnP
- Prot-Based VLAN
- Routing Protocol: - Static Routing - RIP V2
Draytek Vigor 2950 Dual WAN Broadband Security VPN Router
