Draytek Vigor 2100V

The DrayTek Vigor2100V is a user-friendly broadband router with a built-in VoIP (Voice over IP) telephone port.The visual design, with its stylish pleasing lines and brushed silver finish provide looks good enough to fit into any environment. The POTS life-line facility provides for automatic failover to your regular phone line in the event of power or Internet failure, as well as letting you use the same phone to access either your regular phone line or VoIP facility when required. The DrayTek Vigor2100V lets you make the jump from dial-up to broadband but also provides the value added features of VoIP to help you make the most from your broadband line. VoIP calls over your cable/xDSL broadband connection can be made to any other compatible device, anywhere on the Internet and anywhere in the world, free of charge.

By using an Internet Telephony Service Provider (ITSP) such as DrayTEL, you can also make calls to any traditional phone line (landline or mobiles), as well as receive calls from anyone. The DrayTek Vigor2100V's firewall provides the ideal balance of ease of use and security to help protect your network.

The DrayTek Vigor2100V series router has an email detection feature for notifying users that your POP3 mail server is holding email by lighting an "email" LED on the front panel of the router without having to turn on your PC or check your email software.This facility can check up to 5 POP3 email accounts.

The DrayTek Vigor2100V lets you make the jump from dial-up to broadband but also provides the value added features of VoIP to help you make the most from your broadband line. VoIP calls over your cable/xDSL broadband connection can be made to any other compatible device, anywhere on the Internet and anywhere in the world, free of charge. By using an Internet Telephony Service Provider (ITSP) such as DrayTEL, you can also make calls to any traditional phone line (landline or mobiles), as well as receive calls from anyone.

The DrayTek Vigor2100VG is a user-friendly broadband router with a built-in VoIP (Voice over IP) telephone port and 802.11g Wireless LAN access point.The visual design, with its stylish pleasing lines and brushed silver finish provide looks good enough to fit into any environment.

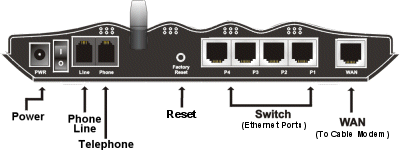

Figure 1 . Back Panel
The POTS life-line facility provides for automatic failover to your regular phone line in the event of power or Internet failure, as well as letting you use the same phone to access either your regular phone line or VoIP facility when required.





Figure 2. Hardware Connection
ITSP Application :

The DrayTek Vigor2100VG lets you make the jump from dial-up to broadband but also provides the value added features of VoIP to help you make the most from your broadband line. VoIP calls over your cable/xDSL broadband connection can be made to any other compatible device, anywhere on the Internet and anywhere in the world, free of charge. By using an Internet Telephony Service Provider (ITSP) such as DrayTEL, you can also make calls to any traditional phone line (landline or mobiles), as well as receive calls from anyone.






Figure 3. ITSP Application
Firewall Application :

The DrayTek Vigor2100VG's firewall provides the ideal balance of ease of use and security to help protect your network.





Figure 4. Firewall Application
Email Application :

The DrayTek Vigor2100VG series router has an email detection feature for notifying users that your POP3 mail server is holding email by lighting an "email" LED on the front panel of the router without having to turn on your PC or check your email software.

This facility can check up to 5 POP3 email accounts.





Figure 5. E-mail Detection
VoIP Application :

The DrayTek Vigor2100VG lets you make the jump from dial-up to broadband but also provides the value added features of VoIP to help you make the most from your broadband line. VoIP calls over your cable/xDSL broadband connection can be made to any other compatible device, anywhere on the Internet and anywhere in the world, free of charge. By using an Internet Telephony Service Provider (ITSP) such as DrayTEL, you can also make calls to any traditional phone line (landline or mobiles), as well as receive calls from anyone.


Figure 6. VoIP Application

1. LAN

  • 4-port 10/100M Base-TX Ethernet switch.

  • DHCP server for IP assignment (up to 253 users).

  • DNS cache and proxy

2. Application Support

  • Supports VPN pass-through.

  • Msn Messenger V6.2, online gaming , and other multimedia applications.

  • UPnP protocol enables router control and enhances access for UPnP ready multimedia applications.

3. Router Management

  • Web-based User Interface

  • Command Line Interface (Telnet).

  • Telnet Remote Access Support.

  • Built-in Diagnostic Function.

  • Syslog Monitoring.

4. VoIP (Voice over IP)

  • Connect a regular telepone to make and receive voice calls using your existing broadband connection, leaving your regular line free.

  • Make and receive calls using your regular phone line (POTS) or via VoIP using the same telephone handset.

  • Auto-Fallback-Phone switches to PSTN during power cut.

  • SIP, RTP/RTCP protocols compliance.

5. WAN/Internet

  • One 10/100M Base-TX port with a RJ-45 connector.

  • Qucik Start Wizard for Internet access.

  • DHCP client for cable service.

  • Static IP address assignment for fixed IP networks.

  • PPPoE client.

6. Firewall Facilities

  • SPI (Stateful Packet Inspection)

  • Selectable DoS/DDoS protection.

  • Flexible URL content filtering.

  • User-configurable packet filtering.

  • NAT/PAT

    • Virtual server via port redirection or open ports.

    • DMZ host.

  • Support ALGs (Application Layer Gateways) for applications.

7. E-mail Detection

  • LED flashes to indicate E-mail is waiting on your mail server (POP3).
