DrayTek Vigor 2910


Vigor 2910      Vigor 2910G (Super G WLAN)
Vigor 2910V (VoIP)    Vigor 2910VG (VoIP Super G)

The DrayTek Vigor 2910 is a high-performance firewall and VPN device, providing up to 32 simultaneous VPN tunnels for branch-office linking or teleworkers. In addition, sophisticated firewalling is provided making the DrayTek Vigor 2910 a comprehensive and feature-packed firewall device to increase both security, flexibility and performance of your network Internet connectivity. Security features are packed into every area of the Vigor2910's functions.

DrayTek Vigor 2910 Enhanced Firewall

The DrayTek Vigor 2910 includes full packet-level firewall facilities and also employs stateful packet inspection/recording for both NAT and non-NAT (IP routed) modes. A default 'deny' policy means that any packet arriving which appears unsolicited won't get through to your LAN. The DrayTek Vigor 2910series also features automatic selectable protection from Dos/DDos (Denial of Service/Distributed Denial of Service) attacks and IP anti-spoofing. User-definable filters also allow you to add additional protection to your connection (see right); a new object-oriented system makes specifying flexible filter sets easier and more flexible. For added confidence, potential or foiled attacks are logged and can be reported via the router's syslog facility or emailed to you by the router.

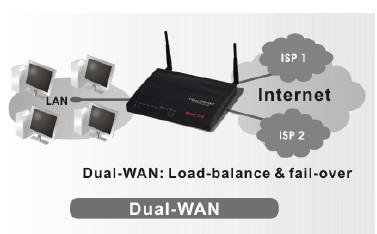

Dual Ethernet WAN Interfaces

The primary 'WAN' interface (the connection to the outside world) is 10/100BaseT Ethernet. This can connect to any Ethernet based router IP or Internet feed which might typically be fed via Leased Line, cable modem, ADSL, Satellite system - anything which is then terminated in Ethernet. In addition, one of the LAN Ethernet ports can be selected as a secondary WAN (Internet) Interface. The second interface can be used as backup failover for the primary WAN port, load balancing or for bandwidth aggregation. This allows you to use two Internet feeds simulataneously to provide higher total capacity (aggregation), or rule-based routing over two feeds (load balancing). If you do not have a second WAN feed, you can use the 2nd WAN port as a regular LAN port instead.



Selectable QoS Assurance

The DrayTek Vigor 2910 supports selectable QoS (Quality of Service). This enables you to select specific protocols/services to have guaranteed levels of your Internet bandwidth. For example, if you need POP3 email to have priority, you could specify that 50% of your available bandwidth is guaranteed for POP3 email. When the bandwidth is not being used by POP3, it is still available for all other traffic,. The Vigor2910's QoS facility provides flexibility - you can set several groups of services to have different priorities, data directions and bandwidth reservations.

1. Dual-WAN
  • Outbound Policy-Based Load-Balance
  • BoD (Bandwidth on Demand)
  • WAN Connection Fail-over
2. WAN Protocol
  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP
  • BPA
  • L2TP
3. Firewall
  • CSM (Content Security Management) for IM/P2P Application
  • Multi-NAT, DMZ Host, Port-Redirection/Open Port
  • Policy-Based IP Packet Filter
  • DoS/DDoS Protection
  • IP Address Anti-Spoofing
  • E-Mail Alert and logging via Syslog
  • Bind IP to MAC Address
4. VPN
  • Up to 32 VPN Tunnels
  • Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
  • Encryption: AES, MPPE and Hardware-Based DES/3DES
  • Authentication: MD5, SHA-1
  • IKE Authentication: Pre-shared Key and Digital Signature (X.509)
  • LAN-to-LAN, Teleworker-to-LAN
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • VPN Pass-Through
  • VPN Backup
5. USB
  • 3G USB Modem
  • USB Printer
6. Bandwidth Management
  • Class-based Bandwidth Guarantee by User-Defined Traffic Categories
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound/Outbound)
  • Bandwidth Borrowed
  • Bandwidth/Session Limitation
7. Network Management
  • Support TR-069
  • Web-Based User Interface (HTTP/HTTPS)
  • Quick Start Wizard
  • CLI (Command Line Interface) / Telnet/SSH*
  • Administration Access Control
  • Configuration Backup/Restore
  • Built-in Diagnostic Function
  • Firmware Upgrade via TFTP/FTP
  • Logging via Syslog
  • SNMP Management with MIB-II
8. Content Filter
  • URL Keyword Blocking (White list and Black list)
  • Java Applet, Cookies, Active X, Compressed / Executable / Multimedia File Blocking
  • Web Content Filter (SurfControl)
  • Time Schedule Control
9. Network Features
  • DHCP Client/Relay/Server
  • Dynamic DNS
  • NTP Client
  • Call Scheduling
  • RADIUS Client
  • DNS Cache/Proxy
  • UPnP
  • Port-Based VLAN
  • Configurable WAN2
  • Routing Protocol:
    • Static Routing
    • RIP V2

Vigor2910      Vigor2910G (Super G WLAN)
Vigor2910V (VoIP)    Vigor2910VG (VoIP Super G)
