DrayTek
Vigor 120
ADSL2/2+ Modem

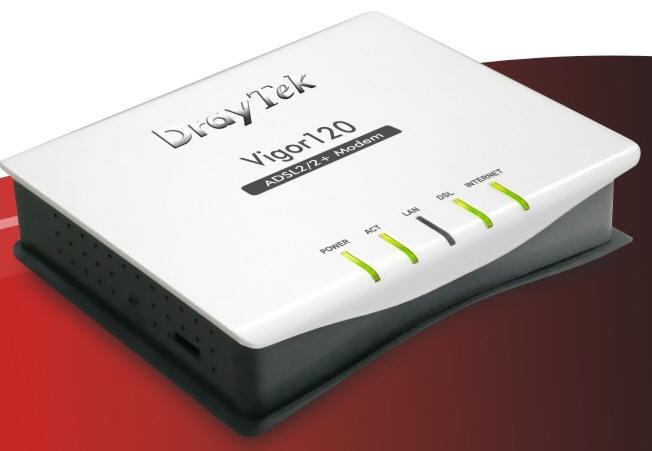

The DrayTek Vigor 120
is a single port ADSL2
ADSL2+ Bridge Modem Router with Firewall that supports up to 4 PVC.
The DrayTek Vigor120 also supports PPPoE/PPPoA relay (PPPoA to PPPoE bridging).
The router or PC all can log into the Internet (your ISP) directly, having
complete control over the ADSL connection. Therefore it is possible to connect a
PPPoE client to the Vigor120 (firewall, Ethernet-WAN router, Apple Airport or
PC) even if the connection to your ISP is still PPPoA (unlike other-brand modems
which only offer PPPoE native bridging). This unique feature is very convenient
for PPPoA-based ISPs.
With the Vigor 120 bridge/modem, you can have a true single public IP address
(or multiple, if you subscribe them) directly through to your router/or
firewall, which also has full control of the ISP connection.
Accordingly, the DrayTek Vigor 120 is ideal for home users and clients running
multi WAN routers like the Vigor 3300V, VigorPro 5300, VigorPro 5510, Vigor
2910, Vigor 2930, Vigor 2950 series and even connecting to the second WAN port
on the Vigor 2820 series products.
The Vigor120 supports TR-069 and it works with most TR-069 based central
management system. VigorACS centralized management system can also facilitate
ISP's deployment of installing DrayTek Vigor 120 and provide professional remote
management for Internet Service Providers.
To secure your network, the DrayTek Vigor120 provides an advanced firewall with
advanced features, such as NAT with multi VPN pass-through. SPI (Stateful Packet
Inspection), to offer network reliability by detecting and prohibiting malicious
penetrating packets or DoS attacks, and user-configurable web filtering for
parental control against network abuse etc.
DrayTek Vigor 120 Quick Specs
ADSL Compatibility
ANSI T1.413 Issue 2
ITU-T 992.1 G.dmt
ITU-T 992.2 G.lite
ITU-T 992.3 ADSL2 G.dmt.bis
ITU-T 992.5 ADSL2+
Annex L (READSL)
Annex M
ATM Protocols
PPPoE / PPPoA Relay (PPPoA to PPPoE Bridging)
RFC-2684 / RFC-1483 Multiple Protocol over AAL5
RFC-2516 PPP over Ethernet
RFC-2364 PPP over AAL5
PPPoE Pass Through from LAN
Transparent Bridge for MPoA
Supports 4 PVC
Firewall Facilities
Multi-NAT, DMZ Host, Port-redirect / Open Port
Stateful Packet Inspection (SPI)
DoS / DDoS Protection
User-configurable IP Packet Filtering
Network Features
IGMPv2 Proxy
DHCP Client / Relay / Server
SNTP Client
Call Scheduling
DNS Cache / Proxy
UPnP
Static Route
Content Filter
URL Keyword Blocking (Whitelist and Blacklist)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Time Schedule Control
Network Management
Web-based User Interface (HTTP)
CLI (Command Line Interface, Telnet)
Administration Access Control List
Configuration Backup / Restore
Build-in Diagnostic Function
Firmware upgrade via TFTP / FTP / HTTP / TR-069
Logging via Syslog
TR-069
