ActivNetworks
BoostEdge BE500 -
BE1000
BoostEdge’s field-proven technology accelerates the performance of business-critical enterprise applications – like ERP, CRM, SFA, supply chain management, and even e-mail.
 |
BE500
|
|
Dramatic performance improvement for
secure and non-secure enterprise applications, websites, e-mail, and FTP. |

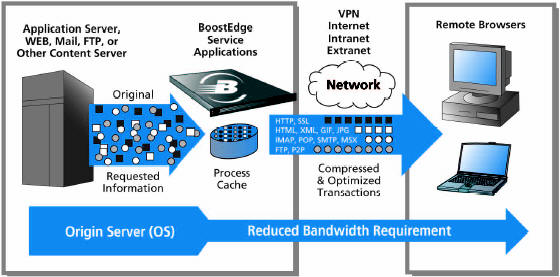

BoostEdge is a robust network appliance that provides a powerful, transparent means of accelerating enterprise application and web content traffic across wide-area networks. The result is real-time, end-to-end performance improvement for remote users, particularly those with limited or shared bandwidth who use business-critical applications. BoostEdge is available in two models. The 1U BE500 supports up to 250 users or 1,000 new connections per second, as well as multiple application types, including e-mail, FTP, and other services. The 2U BE1000 is higher capacity, supporting up to 2,000 new hits per second and can accommodate an optional SSL acceleration board. Both models are available with HTTP acceleration and industry-standard OpenSSL software to manage more secure HTTPS traffic. Both models ship with a built-in SNMP agent and are administered via a browser-based interface, enabling simple and unobtrusive integration with your existing network architecture.
Performance is key to your business success
BoostEdge’s field-proven technology accelerates the performance of business-critical enterprise applications – like ERP, CRM, SFA, supply chain management, and even e-mail. It is an effective solution for many environments, including:
• Enterprise intranets • Extranets • Content websites • E-commerce • Portals • ASP
The appliance approach to application acceleration makes BoostEdge easy to deploy, requiring no change to your application server or network. Once installed, BoostEdge will immediately reduce the amount of data traffic running on your network, improve download times and server capacity, increase user satisfaction, and lower your overall operating costs.
BoostEdge key features
• Accelerates HTTP, e-mail, and FTP traffic on-the-fly
• HTTP service supports:
* Secure HTTPS traffic delivery with
optional SSL acceleration card
*
Optimization and compression of HTTP page elements for reduced
volume and faster
downloads
*
Embedded acceleration cache and connection management features
offload the content
server and reduce processing latency
• Easy browser-based management reduces time and cost
• Thin client (optional for HTTP; required for
e-mail and FTP) is downloadable
and upgradeable directly from the BoostEdge server
• Fail-safe NIC card automatically switches the appliance into pass-through mode
• Simple to deploy and non-intrusive to your network
• Rack-mountable 1U or 2U form factor
| Specifications | BoostEdge BE500 | BoostEdge BE1000 |
| Application Support | Supports multiple services | Supports multiple services and optional SSL card |
| Features | 2-box cluster provides fail-over and overflow processing Multiple IP port acceleration | 2-box cluster provides fail-over and overflow processing Multiple IP port acceleration |
| Interfaces | 10/100 Mbps Ethernet Fail-safe switch to wire (network bypass) | 10/100 Mbps Ethernet Fail-safe switch to wire (network bypass) |
| Device Management | Web-browser interface SNMP agent | Web-browser interface SNMP agent |
| Capacities | ||
| Established Connections | Up to 40,000 | Up to 80,000 |
| New Connections/Second | Up to 1,000 | Up to 2,000 |
| Hits per Second | Up to 1,000 | Up to 2,000 |
| Processing Throughput | Up to 13 Mbps | Up to 21 Mbps |
| Input Capacity | Up to 26 Mbps | Up to 42 Mbps |
| Physical | ||
| Height | 43 mm (1.693 in) | 89 mm (3.504 in) |
| Width | 430 mm (16.93 in) | 430 mm (16.93 in) |
| Depth | 609.2 mm (23.89 in) | 648 mm (25.52 in) |
