Frame Relay Async Polling Master

SR-01-APM Async FRAD designed for polling networks

Allows async multipoint polling over frame relay networks Async RS-232 interface up to 57.6 Sync RS-232 composite to 128 kbps Use for financial, traffic, SCADA networks Internal DSU option Simple to configure for polling protocol and address mapping Often more cost effective than multipoint polling modem networks

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Indicators (front panel)
Controls
Data Ports
Physical/Electrical
Options

APPLICATION

FEATURES

• Allows async multipoint polling over frame relay networks
• Async RS-232 interface up to 57.6
• Sync RS-232 composite to 128 kbps
• Use for financial, traffic, SCADA networks
• Internal DSU option
• Simple to configure for polling protocol and address mapping
• Often more cost effective than multipoint polling modem networks

DESCRIPTION

The APM is easy to set up. Just define the length of the polling address (one or two bytes), its position in the poll (first, second, third character, etc.), adjust an idle timer to account for time between polls, then map the addresses to the frame relay DLCI addresses. It couldnt be easier or more flexible in its application.

The APM makes it easy to convert async polling networks from multipoint modems to frame relay. Fast polling modems are disappearing from the market place at the same time async polling systems are speeding up their requirements from 1200 to 9600 bps and faster. As remote terminal units become more capable, more data must be exchanged from the host to the remote units for financial, traffic and SCADA networks. The APM is the ideal product for this requirement. It supports async port speeds up to 57.6 Kbps and synchronous frame relay composite speeds to 128 Kbps.

The APM is also as cost effective or more so than analog high speed fast polling modems. Frame relay networks are becoming less expensive than analog multipoint networks, and the DSUs are less expensive than high speed fast poll modems, even in combination with DCBs SR-01. The hardware cost savings provide a compelling reason to use the APM.

An internal DSU is also available for the APM, as well as for the remote units, which are the DCB SR-01 frame relay units (the APM is required only at the host end). With an internal DSU, you get the entire package you need in a single enclosure.

SPECIFICATIONS

General

• Rates: Async port to 57.6 Kbps (57.6 default)
• Application: Frame relay point to multipoint for async polling protocols. The SR-01
• frame relay unit is used at the remote end in conjunction with the APM
• Composite and async ports are RS-232
• Supports frame relay composites to 128 Kbps

Indicators (front panel)

Power, Activity, Line Error, Modem Ready, Option, Port 1 Setup

Network Management Port

Interface: CCITT V.24, RS-232-D
Connector: RJ-45 (8-wire)
Can be mapped to Port 1
Network Management Port to terminal cable included

Controls

• Front panel push button for loopback
• Side door accessible firmware cartridge for installing firmware upgrades
• Setup via the "Port One Setup", activated by the front panel push-button, or setup
• via rear panel setup port. Use to define polling protocol and map addresses to
• DLCIs

Data Port

• Interface: RS-232, V.24, speeds up to 57,600 bps
• Connector: RJ-45 per EIA/TIA 561 pinouts
•

Physical/Electrical

Power requirements: 120 VAC, 18 Watts, 60 Hz wall mount power supply, (220 VAC supply available)
1 Pound
101/4" x 93/4" x 21/4"

Options

56 Kbps internal DSU/CSU

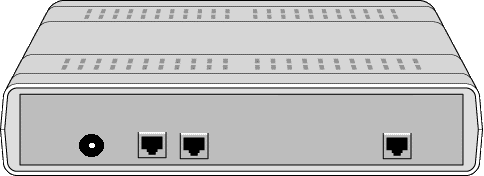

Rear view of DCB SR-01APM
