Draytek Vigor 2100G
Wireless Router

  • Highly integrated 4-port broadband router with wireless 802.11g access point.

  • Sharing single broadband connection among wired and wireless users.

  • Industrial-strength security features : WPA/ PSK, MAC address control.

  • Hidden SSID.

  • Advanced firewall and parental control : SPI, flexible URL content filtering.

  • E-mail detection with LED flashing indication.

The DrayTek Vigor2100G Wireless Router is a highly integrated device for easy internet sharing of your broadband connection and builds a robust wireless network able to achieve prevailing transfer data speed with max wireless signal rate of up to 54Mbps.

The DrayTek Vigor2100G Wireless Router also offers indus trial-wide backward compatibility to 802.11b networking devices.The embedded Web GUI with Quick Start Wizard which support all common operation systems will help you to connect to the Internet painlessly with in minutes. Among your entire network, either wired or wireless, users will be capable to enjoy one high-speed connection for surfing Internet, playing enjoyable streaming real-time media and on-line game , and sharing printer and storage.

Together with friendly E-mail alerts notifying you of hack attempts/attacks, system logs monitoring and built-in diagnostic functions, DrayTek Vigor2100G Wireless Router ensures you a well-protected network experience.

The Vigor2100G Wireless Router is a highly integrated device for easy internet sharing of your broadband connection and builds a robust wireless network able to achieve prevailing transfer data speed with max wireless signal rate of up to 54Mbps. The Vigor2100G Wireless Router also offers indus trial-wide backward compatibility to 802.11b networking devices.






Figure 1 . Back Panel

The embedded Web GUI with Quick Start Wizard which support all common operation systems will help you to connect to the Internet painlessly with in minutes. Among your entire network, either wired or wireless, users will be capable to enjoy one high-speed connection for surfing Internet, playing enjoyable streaming real-time media and on-line game , and sharing printer and storage.

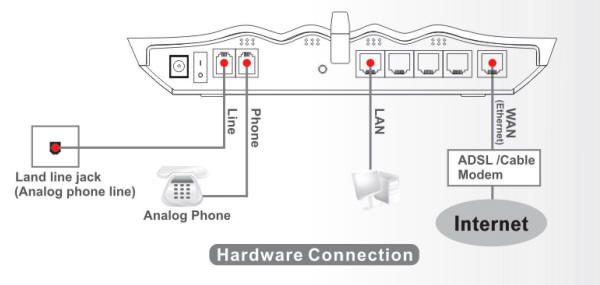

Figure 2. Hardware Connection






Figure 3. Wireless Application
Firewall Application :







Figure 4. Firewall Application

Email Application :

Together with friendly E-mail alerts notifying you of hack attempts/attacks, system logs monitoring and built-in diagnostic functions, Vigor2100G Wireless Router ensures you a well-protected network experience.




Figure 5. E-mail Detection



1. WAN/Internet

  • One 10/100M Base-TX port with a RJ-45 connector.

  • Quick Star Wizard for Internet access.

  • DHCP client for cable service.

  • Static IP address assignment for fixed IP networks.

  • PPPoE client.

  • PPTP support.

2. LAN

  • 4-port 10/100M base-TX ethernet switch.

  • DHCP server for IP assignment (up to 253 users),

  • DNS cache and proxy.

3. Wireless Access Point

  • IEEE802.11b/g compliant.

  • Wireless client list.

  • Wireless security:

    • 64/128 bits WEP encryption.

    • WPA PSK (IEEE802.1i).

    • MAC address access control.

    • Hidden SSID

4. Firewall Facilities

  • SPI (Stateful Packet Inspection).

  • Selectable DoS/DDoS protection.

  • Flexible URL content filtering.

  • NAT/PAT.

    • Virtual server via port redirection or open ports.

    • DMZ host.

5. Network Features

  • DHCP client/relay/server.

  • Dynamic DNS.

  • SNTP client.

  • Call scheduling.

  • DNS cache/proxy.

6. E-mail Detection

  • LED flashes indelicate E-mail is waiting on your mail server (POP3).

7. Router Management

  • Web-based user Internet.

  • Command line Interface (Telnet).

  • Telnet Remote Access Support.

  • Built-in diagnostic Function.

  • Logging via syslog

8. Application Support

  • Support UPnP.

  • Supports ALGs (Application Layer Gateways).

    • IM/P2P, online gaming, and other multimedia applications.
