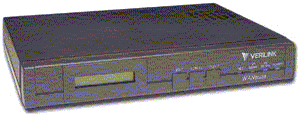

WANsuite 5230 / 5260

The WANsuite® 5230 and 5260 are intelligent access devices that can be used for private leased line or Frame Relay networks for E1 or Fractional E1 connections. Each unit serves as an enhanced CSU/DSU with a software-selectable data port (two ports on the 5260) and a 10/100Base-T Ethernet port for routing and management. The units provide network statistics for Layer 1, Layer 2, and Layer 3, auto discover DLCIs, offer LMI sourcing to maintain the frame circuit in the event of equipment failure, and provide the statistics needed to enforce Service Level Agreements. The 5260 also features automatic protection switching on the data ports and offers a DSX port for digital voice and can be used as an in-line probe of a Frame Relay circuit. Both models offer SNMPv.2 and remote management with a simple-to-use Web browser interface.

Highlights

E1/FE1 WAN access device with built-in router/bridge
IP host access list and two levels of password protection for enhanced network security
DSX port for digital voice or in-line probe applications
Software-selectable serial ports
Supports TDM, Frame Relay, and PPP applications
Embedded web-based management tools
SLA verification with Layers 1, 2, and 3 performance statistics collection
Supports up to 128 DLCIs
Supports DHCP server and client
Built-in service aware technology for real-time measurement of bandwidth utilization, network delay, and verifying SLAs
10/100Base-T Ethernet interface
Supports RIP1, RIP2, and OSPF routing protocols

SPECIFICATIONS

WANsuite 5230 E1/FE1 CSU/DSU, Router

Network: 1, Data: 1 Software-selectable

WANsuite 5260 E1/FE1 CSU/DSU, Router

Network: 2 ports; 1 primary, 1 equipment

PA RT NUMBER AND DESCRIPTION

1100007: WANsuite 5230 AC power

1100006: WANsuite 5260 AC power

1100058: WANsuite 5230 DC power

1100057: WANsuite 5260 DC power

cables and accessories included with units:

9-1544-619-009: RJ-48/RJ-48 Pin to Pin, 9 ft

33-00221: DB-9M to DB-9F, 6 ft

SERIAL INTERFA C E

DTE Port: Software-selectable V.35, EIA-530, RS-232

Data Rate: Sync: 1200 - 115200 bps and Nx64

(N=1 to 32); Async: 1200 - 115200 bps

Connection : DB-25 female

NETWORK INTERFA C E

Line Rate: 2.048 Mbps (± 50 bps)

Data Rate: Nx56/64 kbps to 2.048 Mbps, where N=1

to 32 DSOs

Line Code: AMI or HDB3

Line Framing: CAS, CCS, or 2 Mbits unframed

Protocol : TDM, Frame Relay

Connection : BNC jack, 75 ohms ± 10%, RJ-48C jack,

120 ohms ± 10%

Input Signal: E1, +1 to -27 dB

Output Signal: 3.0 V base-peak into 75 or 120 ohms

Line Protection : 1000 V protection, fused input and output

per GR 1089

Ones Density: HDB3, alternate fill

2.048 kbps Interface: Per ITU-T G.823, G.703, G.704

ETHERNET INTERFACE

Connection: 8-pin modular

Compatibility: 10/100 Base-T, Autosensing

Protocols: RIP1, RIP2, OSPF, TCP/IP, un-numbered

ADVANCED FEATURES

NAT/NAPT, PPP/NAPT

Dynamic IP

DHCP server/client

TCP server

IP Host Access List

MANAGEMENT INTERFACE

WANsight (embedded Web - server interface), VT100,

Telnet, SNMPv.2, local supervisory port, Ethernet port

INDUSTRY LISTINGS

FCC Compliance: Part 15 Subpart B, Class A, Part 68

US Safety: UL 1950 3rd Edition

Canadian Safety: CSA C22.2 No. 950-95

Industry Canada: CS-03, Issue 8

BellCore : GR - 1089 - Core Part 3

FRAME RELAY STATISTICS COLLECTED IN 96

15-MINUTE INTERVALS

Tx/Rx frames and octets

Tx/Rx mgmt frames and octets

Rx frames with FECN, BECN

Rx invalid frames

Tx/Rx status inquiry frames

Tx/Rx status response frames

Rx invalid LMI frames

Peak/Average throughput

Rx frames with DE bit set

Tx excess CIR and Be

Verso / Verilink’S SERVICE AWARE TECHNOLOGY

Layer 3 Statistics and Up: IP, PPP, TCP, UDP, FTP, TFTP,

SNMP, RIP1, RIP2, BootP, SMTP, HTTP, ICMP, OSPF, L2TP,

H.323

Peak and Average Throughput on Up to 10 User-

Definable Filters: DLCI, IP address, or IP port number

Top talkers

VERIFY SERVICE LEVEL AGREEMENTS (FRF. 1 3)

Frame delivery ratio

Data delivery ratio

Round trip delay

Service availability in seconds

WARRANTY AND SUPPORT

Five-year warranty
