Motorola Codex Telenetics 3512
DSU/CSU
Standalone and Rack Chassis

Telenetics 3512 DSU/CSU Formerly Codex 3512 DSU/CSU's

Data Service Unit/Channel Service Unit (DSU/CSU) supports synch transmission up to 64 kbps and async up to 19.2 kbps. Available with Point-to-Point (PP), Network Management Support (NMS), Time-Division Multiplexing (TDM), and Single Line Restoral for V.32 bis (SLR). Standalone units shipped with 100-120 VAC power supply, 47-63 Hz. Order 220/240 VAC power supply kit separately (TEL-48428).

Telenetics Codex 3512 DSU/CSU Basic Features

Bell DSU-500A and CSU 550A Compliant, Synchronous transmission to 64 Kbps, Asynchronous to 19.2 Kbps, Data Rates to 64 Kbps

TEL-49151 Telenetics Codex 3512 1-CHANNEL STANDALONE 2.4 - 64K
TEL-49152 Telenetics Codex 3512 1-CHANNEL STANDALONE 2.4 - 64K w/ NMS
TEL-49154 Telenetics Codex 3512 4-CHANNEL STANDALONE w/ PP, TDM
TEL-49155 Telenetics Codex 3512 4-CHANNEL STANDALONE w/ PP, TDM, NMS
TEL-49159 Telenetics Codex 3512 1-CHANNEL STANDALONE w/ SLR
TEL-49160 Telenetics Codex 3512 1-CHANNEL STANDALONE w/ SLR, NMS
TEL-49175 Telenetics Codex 3512 1-CHANNEL NEST CARD 2.4 - 64K
TEL-49176 Telenetics Codex 3512 1-CHANNEL NEST CARD 2.4 - 64K w/ NMS
TEL-49178 Telenetics Codex 3512 4-CHANNEL NEST CARD 2.4 - 64K w/ PP
TEL-49179 Telenetics Codex 3512 4-CHANNEL NEST CARD w/ NMS, PP
TEL-49207 Telenetics Codex 3512 Standalone to Nest Conversion Kit (Back panel kit)
TEL-49303 Telenetics Codex 3512 STANDALONE with NMS, SW56 4-WIRE restoral, includes hold and LL support
TEL-49304 Telenetics Codex 3512 NEST CARD with NMS, SW56 4-WIRE restoral, includes hold and LL support

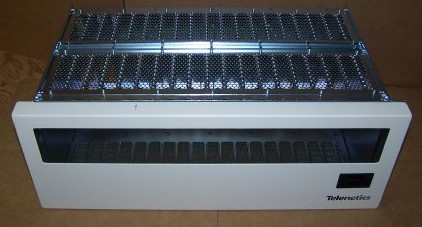

3512 Mini Nest Rack Chassis
TEL-48015 Telenetics 3512 16 SLOT MINI NEST with 110/120/220/240 VAC

3512 Power Supply Accessory
TEL-48428 Telenetics 3512 100/120/220/240 VAC PS accessory kit for 3512

Additional Product Specs

- Aggregates data from multiple devices over a single DDS link, eliminating costly multiple lines!
- Optional Multipoint Mux allows operation of multiple applications on a single multipoint line.
- Available with internal SLR or Switched 56 option (4-wire), giving you choice of integrated dial or 56K restoral for continuous transmission.
- Customize restoral lines according to your needs- A/B switch provides multiple-port restoral that switches all mux ports to external SW56 or DBU devices.
- Operates as a limited distance solution, supporting point-to- point short-haul networks up to 56 kbps.
- Point-to-point/multipoint rate adaption permits use of lower- priced digital services even if higher data rates aren't immediately required.
- Remote Front Panel feature lets you configure remote 3512s from your own T3512.
- Optional network management support for Codex 9300 and 9800 Series NMS Systems.


Data Connect only offers and stocks like new and refurbished Telenetics product
