Quick
Eagle Ensemble
CSU DSU Shelf System
 The
Ensemble Shelf System is a high-density, compact chassis that holds up to 15 DSU
or CSU modules, providing access to Internet and Frame Relay networks at speeds

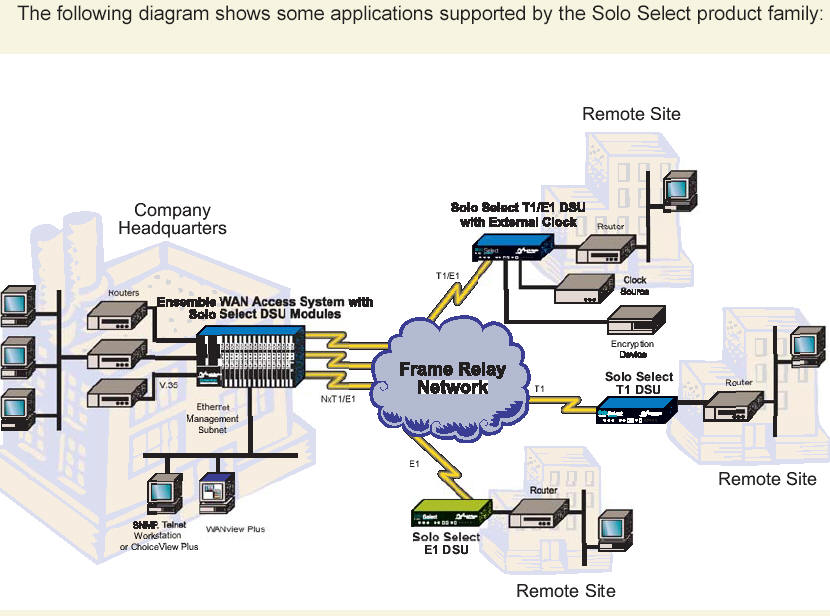

ranging from 56 kbps to full T1 or E1. Well suited for linking hub and
central-office locations to multiple remote sites, the Ensemble offers an
economical and space-saving advantage over deploying multiple stand-alone
devices at a single site.
The Ensemble features dual redundant power supplies, modules that are
hot-swappable, and versatile testing and management capabilities. When equipped
with a Solo Select family of DSUs, the Ensemble can function as a WAN probe,
giving users end-to-end control of their Frame Relay networks and allowing them
to conduct extensive service level monitoring.
The Ensemble's Management Access Processor module provides a means for
simultaneous SNMP or telnet management access to each module in the chassis.
Additionally, the unit offers in-band management and embedded data link access.
The Ensemble's device-specific MIB can be easily integrated with popular SNMP
management packages, including Infovista, Concord Health, Micromuse, SunSoft's
SunNet Manager, and Hewlett-Packard's HP OpenView.
Main Features:
- Compact shelf houses up to 15 hot-swappable WAN modules:
56/64, T1, and E1 DSUs with optional RMON-1 & 2 based performance monitoring
with FRF.13 Service Level Agreement (SLA) verification
- Management access: Ethernet, Telnet, and embedded SNMP management.
- DC with optional redundant AC load sharing power supplies
Alarm dial-out connection for unattended remote operation
