G.SHDSL NTU
The Patton 3088 is the lowest cost G.SHDSL modem that supports data rates up to 4.6 Mbps over one pair of copper wire.
-
nx64 Rates to 4.6 Mbps ? With multiple full-duplex symmetric rates available, users select the bandwidth option they need.
-
Low Cost Fixed Interfaces ? Multiple interface options to choose from: T1/E1 (G.703/G.704), 10/100 BaseT Ethernet, X.21, and V.35.
-
Software upgrades make it easy to keep the RocketLink-G in service for years.
-
Rack Cards (E1/FE1, 10/100 BaseT Ethernet, X.21, and V.35) for the 1001 Telco Chassis ease CO deployment.
-
NetLink Plug 'n' Play - Just plug them in and the link comes up in seconds. Set the unit to use G.Handshaking and the selection of optimal link speeds can also be done automatically.
-
Remote Console - With remote console, any Patton G.SHDSL modem (3096RC or 3088) can be used to manage the remote CPE modem.
-
Front Panel LEDs provide users with quick feedback on unit operation.
-
Terminate routed or bridged Ethernet traffic with a ForeFront 6081RC EdgeRoute.
The Patton 3088 G.SHDSL RocketLink-G NTU is the perfect choice
for users or service providers who need high-speed dedicated network connections
and know what interface they want. Based on the ITU and ETSI G.SHDSL G.991.2
standard, the RocketLink-G NTUs enable providers to extend their reach-and-range
by delivering rate-adaptive nx64 symmetrical speeds from 192 kbps to 4.6
Mbps?all over a single pair of wires. The Patton 3088 likewise supports
G.Handshaking per ITU G.994.1 for automatic rate adaptation to existing line
conditions.
The RocketLink-G uses Patton?s NetLink Plug 'n' Play feature to remove any
questions of configuration when used as the CPE solution with any Patton CO
solution. Just set the units to their default mode and plug them in. The remote
modem configures automatically and the link is up and running in seconds. With
support for remote console, future configuration changes and operating
statistics are available via the out of band EOC channel. Use remote console

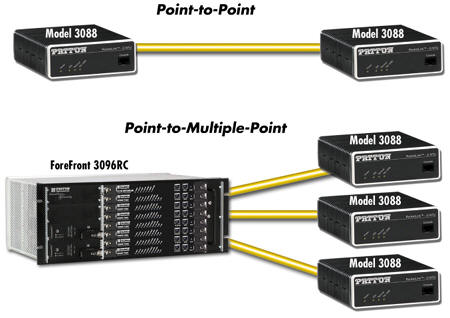

when deploying RocketLink-G NTUs either back to back or with a ForeFront system.
A perfect complement to any ForeFront AIS solution.
The Patton 3088 is available with V.35, X.21, T1/E1 and 10/100Base-T Ethernet
interfaces. The V.35 interface is presented on an female DB-25 connector. The
X.21 is presented on a female DB-15 and is DTE/DCE selectable. The T1/E1
interface is presented on an RJ-48C and optional dual BNC connector. It operates
as a channelized interface allowing for fractional T1/E1 configurations
(G.703/G.704).
|
3088/CA
|
3088/D
|
3088/K
|
3088/I
|
|
| Interface |
V.35; female DB-25 with M/34 converter
included
|
X21; female DB-15
|
T1/E1; Dual BNC and RJ-48C
|
10/100Base-T Ethernet
|
| Testing Parameters | V.52 511/511E Pattern Generator with RDL; LAL | |||
| Clocking | Internal, Network or Receive Recover Clocking | |||
| Line Coding | TC-PAM 16 for rates from 64 kbps to 2.3 Mbps; TC-PAM 32 for rates above 2.3 Mbps; Annex A & B; Automatic Line Equalization | |||
| Line Interface | RJ-11; Two Wire (single twisted pair); Impedance = 135 Ohm | |||
| Management | DIP switch (all Pattons except 3088/I), console, remote console or proxy SNMP from a Central Office ForeFront | |||
| Front Panel Indicators | LEDs for DSL link, Transmit/Receive data, no signal, loop test errors, and test mode indication | |||
| Power Supply | External power supply options: Universal 90 - 260 VAC operating from 50 - 60Hz; 120 VAC/60 Hz; 240 VAC/60Hz; -48VDC | |||
| Compliance | FCC Part 15A, CE Mark, EMC Directive 89/336/EEC, Low-Voltage Directive 73/23/EEC | |||
| Environment | Operating Temperature: 32-122?F (0?50?C); Humidity: 5-90% non-condensing | |||
| Dimensions | 4.2 x 1.6 x 5.55 in. (10.7 x 4.1 x 14.1 cm) | |||
|
Distance Table
|
|||||||||||||
|
|
|
NO NOISE
|
|||||||||||
|
Line Rate
|
26g (0.4mm)
|
24g (0.5mm)
|
22g (0.6mm)
|
19g (0.9mm)
|
|||||||||
|
N
|
kbps
|
feet
|
miles
|
km
|
feet
|
miles
|
km
|
feet
|
miles
|
km
|
feet
|
miles
|
km
|
|
3
|
192
|
21000
|
4.0
|
6.4
|
28000
|
5.3
|
8.5
|
35000
|
6.6
|
10.7
|
52500
|
9.9
|
16
|
|
8
|
512
|
18750
|
3.6
|
5.7
|
25000
|
4.7
|
7.6
|
31250
|
5.9
|
9.5
|
46875
|
8.9
|
14.3
|
|
16
|
1024
|
16500
|
3.1
|
5.0
|
22000
|
4.2
|
6.7
|
27500
|
5.2
|
8.4
|
41250
|
7.8
|
12.6
|
|
24
|
1536
|
13500
|
2.6
|
4.1
|
18000
|
3.4
|
5.5
|
22500
|
4.3
|
6.9
|
33750
|
6.4
|
10.3
|
|
32
|
2048
|
12750
|
2.4
|
3.9
|
17000
|
3.2
|
5.2
|
21250
|
4.0
|
6.5
|
31875
|
6.0
|
9.7
|
|
36
|
2304
|
11250
|
2.1
|
3.4
|
15000
|
2.8
|
4.6
|
18750
|
3.6
|
5.7
|
28125
|
5.3
|
8.6
|
|
48
|
3072
|
8250
|
1.6
|
2.5
|
11000
|
2.1
|
3.4
|
13750
|
2.6
|
4.2
|
20625
|
3.9
|
6.3
|
|
56
|
3584
|
7500
|
1.4
|
2.3
|
10000
|
1.9
|
3.0
|
12500
|
2.4
|
3.8
|
18750
|
3.6
|
5.7
|
|
64
|
4096
|
6000
|
1.1
|
1.8
|
8000
|
1.5
|
2.4
|
10000
|
1.9
|
3.0
|
15000
|
2.8
|
4.6
|
|
72
|
4608
|
5250
|
1.0
|
1.6
|
7000
|
1.3
|
2.1
|
8750
|
1.7
|
2.7
|
13125
|
2.5
|
4.0
|
|
3088/CA/EUI |
RocketLink-G - G.SHDSL MODEM, V.35 DCE interface on DB-25F; DB-25 to M/34 converter included; universal AC |
|
3088/D/EUI |
RocketLink-G - G.SHDSL MODEM, X.21 interface on DB-15F connector; Universal AC |
|
3088/I/E48 |
G.SHDSL MODEM, W/ ETHERNET and 48 VDC |
|
3088/I/EUI |
G.SHDSL MODEM, W/ ETHERNET Interface |
|
3088/K/EUI |
RocketLink-G - G.SHDSL MODEM, E1 with RJ48&BNC; UI power |
|
3088/T/EUI |
RocketLink-G - G.SHDSL MODEM, T1 with RJ48; UI power |
|
3088RC/A/I |
RocketLink-G G.Shdsl NTU Rack Card; V.35 interface on M34 connector |
|
3088RC/C/IA |
RocketLink-G G.Shdsl NTU Rack Card; 10BaseT interface |
|
3088RC/D/V |
RocketLink-G G.Shdsl NTU Rack Card; X.21 interface on DB15 connector |
|
3088RC/K/K |
RocketLink-G G.Shdsl NTU Rack Card; E1 interface BNC & RJ |
