Patton Electronics 1193
NetLink™, Single-Mode Fiber Modem for G.703 Extension

Patton Model 1193
NetLink™, Single-Mode Fiber Modem for G.703 Extension
Use these low-cost fiber modems to connect equipment on a G.703 network that are located as much as 50 km (31 miles) apart.

Model 1193 Photo

  Features & Benefits
  • Single-mode transmission (1310 nm) up to 31 miles (50 km) on one fiber
  • 2-Mbps G.703 (E1) operation
  • ITU-T CTR 12 (G.703) compliant
  • FC and SC single-mode fiber connector options
  • AMI and HDB3 line encoding option
  • 120-ohm (RJ-48) and 75-ohm (dual-coax) G.703 connectors
  • Local and remote loopback diagnostics
  • 511 and 511/E BER tests
  • Internal, external (G.703), and receive recover clocking
  • Rack cards fit into Model 1001 access rack system
  • CE marked.


Overview

Typically, customers who want to deliver data at 2-Mbps rates between their remotely located equipment have had to rely upon lease-line services provided by a PTT or Telco. Using the Model 1193, however, customers can extend the G.703 signals on their high speed multiplexers or cellular base stations using single-mode fiber.

The NetLink Model 1193 Single-Mode fiber modem is a low-cost alternative to leasing G.703 service when connecting remote locations. A pair of NetLink 1193s deliver 2.048 Mbps clear channel data across a single strand of single-mode fiber at distances up to up to 50 km (31 miles)! That’s five times farther than distances available over xDSL (see diagram below).

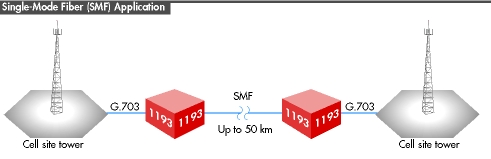

Model 1193 Application Diagram

For limited-distance applications up to 2.5 km (1.6 miles), Patton offers its economical multi-mode fiber alternative—the NetLink 1186—which also requires only one fiber.

The 1193 provides 120-ohm (RJ-48) and 75-ohm (dual-coax) options for connecting the G.703 interface of a CSU/DSU, multiplexer, or base station. The modem sends AMI- or HDB3-encoded data over single- or multi-mode fiber to the remote NetLink 1193.

SC or FC fiber interface are available. The Model 1193 is also available as a rack card for use in Patton's NetLink 1001 2U rack chassis. The NetLink 1001 rack system provides dual-redundant AC and/or DC power options and includes all the features of the standalone units.




Ordering Information
1193/FC/UI

Single-Mode FC; G.703 dual-BNC and RJ-45
1193/SC/UI Single-Mode SC; G.703 dual-BNC and RJ-45
1193RC/FC/xx Single-Mode FC rack card; G.703 dual-BNC and RJ-45
1193RC/SC/xx Single-Mode SC rack card; G.703 dual-BNC and RJ-45
*Power supply options (xx): UI = Universal interface 90—260 VAC; 120 = 120 VAC; 230 = 230 VAC; 48 = -48 VDC



Specifications


Data rate: 2.048 Mbps
G.703 interface: RJ-48C (120-ohm) and dual-BNC (75-ohm)
Fiber interface: FC or SC
Line coding: AMI or HDB3
Line framing: G.703 (unframed)
Clocking: Internal, external or receive recover
Optical transmitter: 1310nm
Link budget: 15dB (9 micron) for 1310nm
Coupled power: 0 to -10 dBm
Diagnostics: Local/remote loop, 511 and 511 with intentional errors
Compliance: CE Mark, G.703, CTR 12
Temperature: 32° to 122°F (0° to 50°C)
Power options: 120-240 VAC universal interface or -48 VDC
