Model 1095
NetLinkô, 2-Mbps, 2-Wire, mDSL Modem
DSL Distances on Just TWO WIRES using mDSL Technology

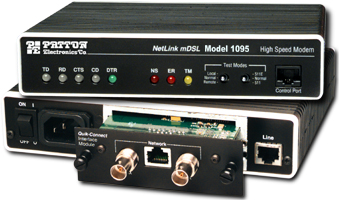

Model 1095

  • DTE Speeds 64 kbps to 2.3 Mbps in user-defineable increments
  • Multiple Line Rates - 128k to 2.3 Mbps
  • Distances Up to 5.9 Miles (9.4 km)
  • 2-Wire Operation
  • Standalone (QuikConnect) and Rackmount Versions
  • SNMP Network Management: including In-Band Management of Remote Units plus Advanced Diagnostics & Statistics

The Model 1095 uses a unique multi-rate digital subscriber line (mDSL) technology to transmit data at line rates from 128 kbps to 2.3 Mbps. The NetLink mDSL modem also connects routers, switches or other access devices at distances over 5 miles/8 km using standard 24 AWG/0.5mm wire. The Model 1095 is available in both rackmount and standalone platforms. The standalone unit supports all QuikConnect interface modules (V.24/RS-232, RS-422/530, V.35, X.21, 64k/G.703, Ethernet Bridge and Voice/Data), and supports DTE speeds from 64 kbps to 2.3 Mbps in user-defineable increments. Diagnostics include V.54 and V.52 testing. Both rackmount and standalone units can be configured and managed using in-band SNMP/HTTP capabilities (via the Model 1000MC Proxy Card) or through externally accessible configuration DIP switches.



Rack Card Interface Options
V.24
(RS-232)
or RS-530
(DB-25F)
G.703 120ohm (RJ-45F)
V.35
(M/34F)
10Base-T (RJ-45F)
X.21
(DB-15F)
G.703 120ohm (RJ-45F) G.703 75ohm (Dual-BNCs)
Standalone Interface Options
V.24/RS232 serial port; DB-25F
IM1/A
RS-422/530 serial port; DB-25F
IM1/B
V.35 serial port; M/34F
IM1/C
X.21 serial port DTE/DCE; DB-15F
IM1/D
Co-directional 64K/G.703 on RJ-45F
IM1/F
10Base-T Ethernet port on RJ-45F
IM1/I
Four 10Base-T ports each on RJ-45F
IM1/I4
FXO interface module; voice/data
IM1/JO
FXS interface module; voice/data
IM1/JS
G.703/G.704 on dual-BNC & RJ-45F
IM1/K
Rack Cards
V.24/V.35, DB-25F/RJ-45 1095RC/A/B
V.24/V.35, M/34F/RJ-45 1095RC/A/I
RS-530, DB-25F/RJ-45 1095RC/B/B
X.21, DB-25F/RJ-45 1095RC/D/V
64/128K, G.703, RJ-45/RJ-45 1095RC/C/O
10Base-T Ethernet RJ-45/RJ-45 1095RC/IA
G.703/G.704 dual-BNC & RJ-45/RJ-45 1095RC/K/K


Rack Card Version

Our NetLink mDSL rack card Model 1095RC is only 3.5"/8.89cm high, allowing up to 16 hot-swappable DSL modems to fit into one 2U high, 19-inch wide rack. The rack can be powered by 90-260VAC or -48VDC single or dual-redundant power supplies. SNMP/HTTP management of all 32 local and remote modems is facilitated by Patton's 1000MC SNMP Proxy Agent. The Model 1095RC works in the same rack with all NetLink products.

Transmission: Synchronous, full duplex, over one uncond. twisted pair (2 wires)
Line Encoding: CAP
DTE Interface: V.24 (RS-232), RS-422/530, V.35, X.21, 64k/G.703, Ethernet Bridge, or Voice/Data depending upon QuikConnect module installed
Clocking: Internal, external or receive recovered from remote unit
DTE Rates: From 64 kbps to 2.3 Mbps in user-definable increments
Distances: Maximum 5.9 mi/9.4 km 128 kbps, over 24 AWG/.5mm wire (no crosstalk)
Line Rates: 128, 256, 384, 512, 768, 1024, 1536, 2048 and 2304 kbps
Local Management: VT100 ASCII via front panel control port for standalone modem; via Model 1001CC control card for rack card modem)
Remote Management: SNMP configuration and management for both local and remote modems via Model 1001MC Proxy Agent rack card; built-in HTTP server on Model 1001MC allows management through the Internet )
Diagnostics: V.54 loops (LLB, RDL); V.52 compliant BER pattern generator and detector (511/511E)
LED Indicators: TD, RD, CTS, CD, DTR, ER, TM and NS Power: 90-264 VAC, 50/60 Hz universal input; -48VDC optional (10 watts)
