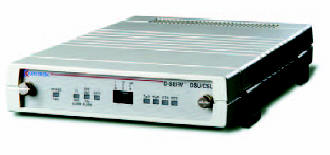

Kentrox D-SERV T1 Single-Port DSU CSU
Description
The D-SERV T1 DSU/CSU is a single-port DSU combined with CSU functionality. It is T1, FT1 and DCS compatible, and supports framebased services. The D-SERV accepts a serial data signal of any multiple of Nx56 kbps or Nx64 kbps bandwidth from your DTE, up to 1.536 Mbps. DS0 channel allocation is selectable, contigious or alternating, with optional channel location. The D-SERV accepts clocking from either network, internal or DTE timing sources. DTE timing allows the unit to be used in tail circuit applications. It can also be used as a high-speed line driver, converting a data signal to T1 format and extending the signal up to 6,000 feet over two shielded twisted pairs.
Features
• Fully compliant with enhanced ESF T1
services
• Ideal for high-speed Internet connectivity for LANs
• Supports Frame Relay and framebased SMDS and ATM
• Stand-alone, rack mountable, or shelf plug-in
• 5 year warranty
Ordering Information
Specifications
NETWORK INTERFACE
Framing: SF/ESF (selectable)
Line Code: AMI or B8ZS (selectable)
Line Rate: T1 (1.544 Mbps)
Input Signal: DSX-1 from 0dB to -27dB typical
Output Signal: DSX-1 with LBO 0
DATA PORT INTERFACE
Bit Rate: Nx56k or Nx64k
Electrical: V.35 or EIA-530 (RS-422/449)
PHYSICAL
Stand-alone: 8"W x 1.6"H x 12"D
Shelf: 17"W x 7"H x 12"D
ENVIRONMENTAL
Operating Temperature: 0° to 50° C
Relative Humidity: 5% to 95% RH
POWER
Stand-alone: 115 VAC, 60 Hz, 8W
Plug-in: 24 to 48 VDC, maximum 4W
WARRANTY
Hardware: 5 Years
