GarrettCom CSN14 with 10 Mb fiber

Features

• Provides one 10 Mb fiber port and two (2) 10/100 copper switch ports
•Two RJ-45 ports support IEEE 802.3u to enable attaching any 10 Mb or 100 Mb device
•Three models for three application environments: - Office, wiring closet - Factory floor - Outdoors
•AC power for all models, Factory floor and Outdoor models also have integral DC terminal blocks
•Same packaging and mounting options as the popular Magnum 14-Series Media Converters

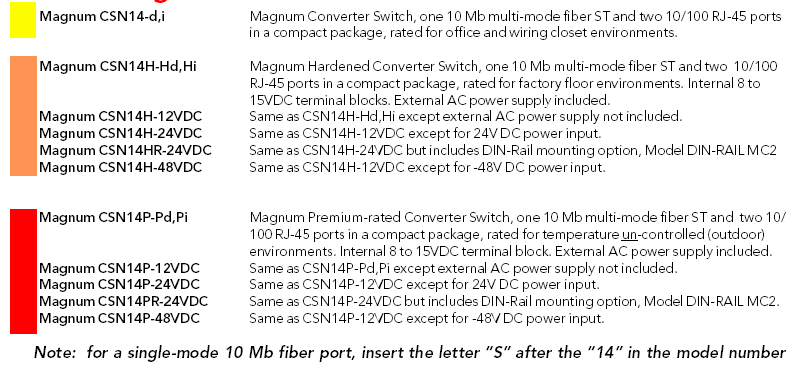

Ordering Information

Magnum CSN14-d,i Magnum Converter Switch, one 10 Mb multi-mode fiber ST and two 10/100 RJ-45 ports in a compact package, rated for office and wiring closet environments.

Magnum CSN14H-Hd,Hi Magnum Hardened Converter Switch, one 10 Mb multi-mode fiber ST and two 10/100 RJ-45 ports in a compact package, rated for factory floor environments. Internal 8 to 15VDC terminal blocks. External AC power supply included.

Magnum CSN14H-12VDC Same as CSN14H-Hd,Hi except external AC power supply not included.
Magnum CSN14H-24VDC Same as CSN14H-12VDC except for 24V DC power input.
Magnum CSN14HR-24VDC Same as CSN14H-24VDC but includes DIN-Rail mounting option, Model DIN-RAIL MC2
Magnum CSN14H-48VDC Same as CSN14H-12VDC except for -48V DC power input.
Magnum CSN14P-Pd,Pi Magnum Premium-rated Converter Switch, one 10 Mb multi-mode fiber ST and two 10/100 RJ-45 ports in a compact package, rated for temperature un-controlled (outdoor) environments. Internal 8 to 15VDC terminal block.
External AC power supply included.

Magnum CSN14P-12VDC Same as CSN14P-Pd,Pi except external AC power supply not included.
Magnum CSN14P-24VDC Same as CSN14P-12VDC except for 24V DC power input.
Magnum CSN14PR-24VDC Same as CSN14P-24VDC but includes DIN-Rail mounting option, Model DIN-RAIL MC2.
Magnum CSN14P-48VDC Same as CSN14P-12VDC except for -48V DC power input.
Note: for a single-mode 10 Mb fiber port, insert the letter “S” after the “14” in the model number
