Draytek
Vigor 2710
ADSL ADSL2+ Router Firewall
Model |
VPN |
WLAN |
DSL |
VoIP |
Draytek Vigor 2710 |
2 |
- |
ADSL2+ |
- |
Draytek Vigor 2710n |
2 |
802.11n Draft 2.0 |
ADSL2+ |
- |
Draytek Vigor 2710Vn |
2 |
11n |
ADSL2+ |
2S,1L |
Draytek Vigor 2710VDn |
2 |
11n |
ADSL2+ |
2S,1L & Dect features |

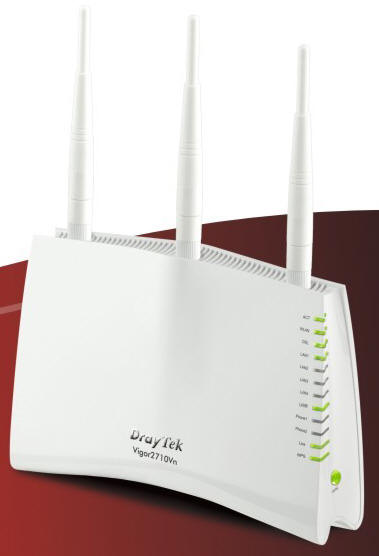

The
DrayTek Vigor2710 is a highly
integrated ADSL2/2+ router with VPN capability targeting SOHO (Small Office and
Home Office) and residential broadband access requirement. These integrated
network access devices not only offer rich functionality with up to 24Mbps
bandwidth in downstream but also bandwidth management for multimedia
applications. The integrated economical design makes the ideal balance of ease
of use and secure network management.
Besides powerful firewall protection against malicious Denial of Service(DoS)
attacks, the DrayTek Vigor is designed with more advanced security feature such
as Stateful Packet Inspection(SPI) to offer network reliability by detecting
attacks and prohibits malicious penetrating packets from entering internal
network.
The easy-to-use CSM (Content Security Management) can prevent family from the
connection to Web sites that contain illegal or objectionable content. The use
of bandwidth/session consuming Peer-to-Peer (P2P) applications can be properly
managed by embedded CSM. You can attach USB storage device to USB port of
DrayTek Vigor to share files. Or, you can use USB printer by connecting it to
USB port.
Furthermore, embedded with VPN support for confidential remote access, the
DrayTek Vigor is equipped with powerful DES, 3DES encryption engine and
automated key management via IKE to easily create 2 simultaneous VPN tunnels.
The DrayTek Vigor series features advanced bandwidth control mechanism such as
IP-layer QoS, NAT Session Limitation, Bandwidth Borrowed, etc., to allow easy,
flexible, reliable access control and bandwidth management. The SPI (Stateful
Packet Inspection) firewall uses object-based design to make settings of
firewall policies easy. The CSM (Content Security Management) feature allows
more precise and efficient access control for URL/Web Content Filtering, IM
(Instant
Messenger) and P2P (Peer to Peer) applications.
DrayTek Vigor supports up to 2 VPN tunnels using advanced protocols such as
IPSec/PPTP/L2TP/L2TP over IPSec with AES/DES/3DES for encryption and
MD5/SHA-1 for authentication. DrayTek Vigor ?n? models comply with 802.11n
Draft-n standards. They support WEP/WPA/WPA2 encryption and MAC Address Control,
Wireless LAN Isolation. The Wireless Rate Control function can adjust the data
rate of each wireless station (client).

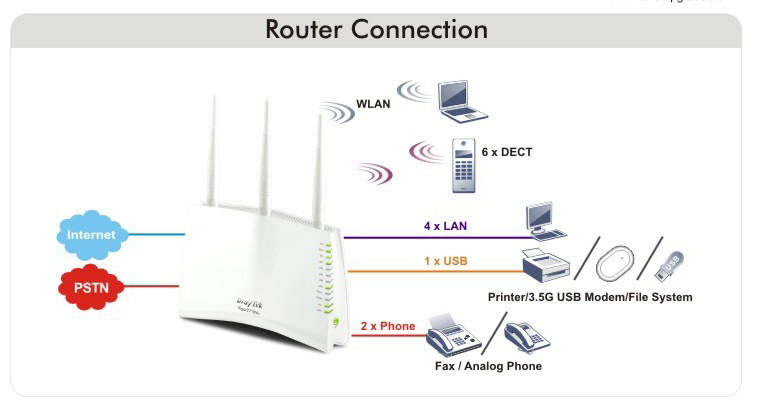

DrayTek Vigor ?V? models provide two analogue phone connectors and one line
port. It supports multiple SIP registrars with high flexible configuration and
call handing options.
DrayTek VigorVDn supports the DECT function compliant with DECT GAP/CAT-iq. It
allows users to dial VoIP call, PSTN call, and Internet call through DECT phone
set
registered in the router.
In addition, DrayTek Vigor series supports USB interface for connecting USB
printer to share a printer or USB storage device for sharing files. DrayTek
Vigor series provides two-level management to simplify the configuration of
network connection. The user operation allows user accessing into WEB interface
via simple configuration. However, if users want to have advanced
configurations, they can access into the WEB interface through administration
operation.
ADSL Interface compliant with :
ADSL, ADSLMax, ADSL2, ADSL2+, Annex A & Annex M
ANSI T1.413 Issue2
ITU-T G.992.1 G.dmt (ADSL)
ITU-T G.992.2 G.lite
ITU-T G.992.3 ADSL2
ITU-T G.992.5 ADSL2+
Annex L (READSL)
Annex M
Routing Protocls :
Internet Protocols : PPP (RFC 1661), PPPoA (RFC2364), MPoA
LAN Protocols : ARP, Proxy ARP, IP, ICMP, IGMP, UDP, TCP
Authentication Protocols : PAP, CHAP, MS-CHAP
DNS Proxy & Cache
Universal Plug'n'Play (uPnP) support
SNMP Reporting Facilities
Firewall Facilities :
Protection against DoS/DDos attacks & IP Anti-Spoofing
Default Port Blocking through NAT
Object Based Firewall
User definable IP filters
URL Filter (block specific web sites)
Web site Category Blocking (subject to subscription)
Block HTTP download of common harmful file types
Peer-to-Peer Software and Instant Messaging Blocking
VPN Facilities (Dial-Out only)
Create up to two dial-out VPN tunnels to remote hosts
Support for PPTP with MPPE encryption over PPTP
Support for L2TP & IPSec with Pre-shared key
DES (56-bit key strength) & 3DES (168-bit key strength) encryption
AH (Authenticated Header) &
ESP (Encapsulated Payload) modes
SHA-1 and MD5 integrity algorhythms
X.509 Client Certificate Support
Remote VPN compatible with other vendor firewalls/VPN devices including Cisco, Nokia, SonicWall, WatchGuard
VPN Passthrough for VPN client/server running behind the router
Wireless LAN Features ('n' Models only)
802.11n Compliant
WiFi Certified
802.11b & 802.11g Compatibility
WEP & WPA Wireless Security & Encryption
WDS - Wireless Distribution System (for expanding wireless networks)
WPS - WiFi Protected Setup
VoIP Features ('V' Models only):
Two phone ports for connecting a regular analogue or cordless phone
SIP Standard compliant, compatible with DRayTEL and many other VoIP services
Free Voice calls to any other compatible VoIP users worldwide
Switches automatically between your PSTN/POTS line and VoIP
Failover to PSTN in event of powercut/ADSL failure
Phone Book (Dialplan) and LCR Rules (Digit Map)
Built-in Ethernet switch featuring :
Four port 10/100BaseT auto-selecting (IEEE802.3)
Automatic selection full/half duplex & straight/uplink modes
Dual-colour LED for each port to indicate operating speed
NAT (Network Address Translation) featuring :
Port forwarding - individual ports (with optional translation) and ranges of ports
Open internal servers up for external access
Soft DMZ - For passthrough of all protocols/data to a single internal client
DHCP Server - User configurable
Easy to use Web-based User Interface, management with optional IP address restriction.
Management Logging/Monitoring via :
Syslog
Web (Browser) based interface
Telnet Interface
Flash-Upgradable memory for firmware upgrades/enhancements
Support for local Class C LAN (up to 253 local users)
Physical Characteristics:
Flash Upgradable firmware
Dimensions (mm) :
Weight : grams approx
Maximum Power Consumption : approx
Supported O/S : Windows 95, 98, ME, NT4, 2000, XP, Vista, 7, Linux & MacOS8/9/X
Warranty : Two (2) year manufacturer's RTB warranty
Box contents : Router, UK PSU, Ethernet cable (1.8M), ADSL RJ11 Line cable (1.8M), Quickstart manual, Utility & Documentation CD-ROM, Wall-mounting screws, Aerial (Wireless models only)
Model |
VPN |
WLAN |
DSL |
VoIP |
Draytek Vigor2710 |
2 |
- |
ADSL2+ |
- |
Draytek Vigor2710n |
2 |
802.11n Draft 2.0 |
ADSL2+ |
- |
Draytek Vigor2710Vn |
2 |
11n |
ADSL2+ |
2S,1L |
Draytek Vigor2710VDn |
2 |
11n |
ADSL2+ |
2S,1L & Dect features |
