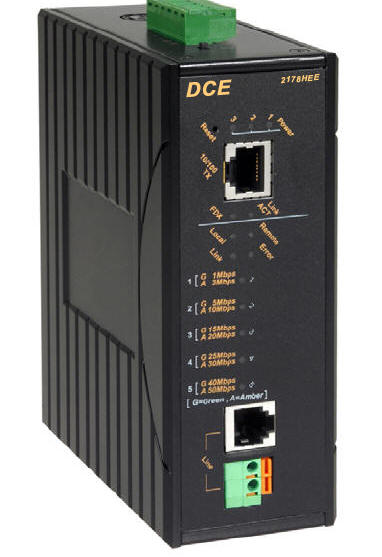

Connect 2178HEE
Industrial Ethernet Extender
The Data Connect 2178HEE is a point-to-point Industrial Ethernet Extender designed to operate in harsh environments that efficiently extends 10/100 Ethernet circuits to over 300meters (984feet) at 50Mbps using existing cross-over pair copper wire. The Data Connect 2178HEE functions at temperatures ranging from -40°C to 75°C (-40°F to 167°F) and is tested for functional operation -40°C to 85°C (-40°F to 185°F). The Data Connect 2178HEE will allow Ethernet connectivity in existing facilities without pulling extra cable. This is the perfect solution to Ethernet on the factory floor where systems have been upgraded from slower serial communications to Ethernet networking. Installation is easy with a single switch setting, one end is set for local and the other remote. The Data Connect 2178HEE is used in pairs to extend Ethernet connectivity over existing voice grade copper wire
Complies with NEMA TS1 & TS2 Environmental requirements for Traffic control equipment
Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
Operates transparent to higher layer protocols such as TCP/IP
Ethernet Port: 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
Ethernet Extender(RJ-11 and Terminal Block) Port: Symmetrical on the VDSL, High-speed Full-duplex 50Mbps communications link over existing copper Telephone line
Support DIP switch to select Local or Remote side
Ten speeds with speed indicator LEDs on front panel of unit, Up to 50Mbps about 300meters (984ft.), Down to 1Mbps about 1,900meters (6,232ft.)
Redundant power inputs with Terminal Block and DC Jack
-40°C to 75°C (-40°F to 167°F) operating temperature range
Hardened aluminum case
Supports DIN-Rail or Panel Mounting installation
Specifications
Standards: IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x, Ethernet over VDSL
Protocols: Transparent to higher layer protocols
Processing Type: Half-duplex back-pressure and IEEE802.3x Full-duplex flow control
Power
Input: Input Voltage: 12 to 30VDC (Terminal Block);12VDC (DC Jack)
Power Consumption: 4.2W Max. 0.35A12VDC, 0.175A24VDC
Power Supply References:
Terminal Block: 12 to 24VDC, 1.5A
DC Jack: 12VDC, 3A
Overload Current Protection: Present
Reverse Polarity Protection: Present
Mechanical
Casing: Aluminum case
Dimensions: 50mm (W) x 110mm (D) x 135mm (H) (1.97" (W) x 4.33" (D) x 5.31" (H))
Weight: 0.8Kg (1.76lbs.)
Installation: DIN-Rail, Panel Mounting
Interface
Ethernet Port:
Port: One RJ-45 port, 10/100Base-TX Full/Half-duplex Auto-Negotiation, Auto-MDI/MDIX
Speed: 10/100Mbps
Distance: 100meters (328ft.)
Cable:
10Base-T: UTP CAT. 3, 4, 5 (2-pair wire)
100Base-TX: UTP CAT. 5 (2-pair wire)
Ethernet Extender Port:
Port: One RJ-11 and Terminal Block port
Speed: 1/3/5/10/15/20/25/30/40/50Mbps
Distance: 1900meters (6,232ft.)
Cable: Telephone line 24 AWG (0.5mm diameter, 1-pair wire) or larger
DIP switch:
One DIP switch: Local (CO) or Remote (CPE)
LED Indicators:
Per Unit: Power Status (Power)
Per Port: 10/100TX: Link/Activity, Full-duplex
Line: Error, Link, Local, Remote
Environment
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Tested -40°C to 85°C (-40°F to 185°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Ambient Relative Humidity: 5% to 95% (non-condensing)
Regulatory Approvals:
ISO: Manufactured in an ISO9001 facility
Safety: UL508, EN60950-1, IEC60950-1
EMI:
FCC Part 15, Class A
EN61000-6-3
EN55022
EN61000-3-2
EN61000-3-3
EMS:
EN61000-6-2
EN61000-4-2 (ESD Standards)
Contact: + / - 4KV; Criteria B
Air: + / - 8KV; Criteria B
EN61000-4-3 (Radiated RFI Standards)
10V/m, 80 to 1000MHz; 80% AM Criteria A
EN61000-4-4 (Burst Standards)
Signal Ports: + / - 4KV; Criteria B
D.C. Power Ports: + / - 4KV; Criteria B
A.C. Power Ports: + / - 4KV; Criteria B
EN61000-4-5 (Surge Standards)
Signal Ports: + / - 1KV; Line-to-Line; Criteria B
D.C. Power Ports: + / - 0.5KV; Line-to-earth; Criteria B
A.C. Power Ports: + / - 2KV; Line-to-earth; Criteria B
EN61000-4-6 (Induced RFI Standards)
Signal Ports: 10Vrms 0.15~80MHz; 80% AM Criteria A
D.C. Power Ports: 10Vrms 0.15~80MHz; 80% AM Criteria A
A.C. Power Ports: 10Vrms 0.15~80MHz; 80% AM Criteria A
EN61000-4-8 (Magnetic Field Standards)
30A/m 50, 60Hz; Criteria A
EN61000-4-11 (Voltage Dip Standards)
A.C. Power Ports: 30% Reduction for 0.5 period; Criteria B
Environmental Test Compliance:
IEC60068-2-6 Fc (Vibration Resistance)
5g 10~150KHz, Amplitude 0.35mm (Operation/Storage/Transport)
IEC60068-2-27 Ea (Shock)
25g 11ms (Half-Sine Shock Pulse; Operation)
50g 11ms (Half-Sine Shock Pulse; Storage/Transport)
IEC60068-2-32 Ed (Free Fall) 1M (3.281ft.)
NEMA TS1/2 Environmental requirements for Traffic control equipment
2178HEE-00B Hardened 10/100Base-TX
Ethernet Extender
Installation Type :DIN Rail (mounting kit is included)
Optional Panel mount kit, ordered separately,
part number: KP-AA96-480
Optional Rack mount kit, ordered separately,
part number: KR-BK43-400
