Canoga Perkins
6004 6008
4 and 8 Channel
CWDM

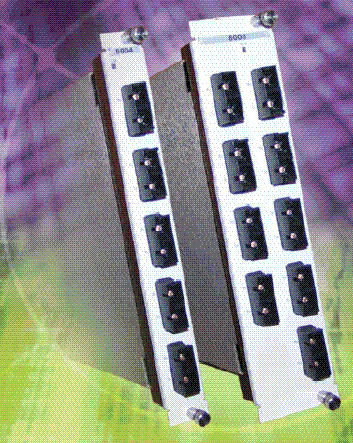

Canoga Perkins’ CWDM system allows service providers to transmit up to 9 applications over a single fiber pair. Model 6004 and 6008 Passive CWDM modules work in conjunction with Canoga Perkins’ CWDM transponder line to deliver carrier class performance at a fraction of the cost of expensive DWDM systems. Each port is capable of receiving discrete CWDM wavelengths from 1470nm to 1610nm, with optional 1310nm pass through channel, and optically multiplexing the wavelengths into one composite. Canoga Perkins is a pioneer in CWDM and is an active member of the CWDM Commercial Interest Group. The passive CWDM module is fully ITU Standards compliant and has successfully attained NEBS Level 3 Compliance. Both 4 channel and 8 channel modules can be fitted in the UCS 1000 chassis. The 4 channel module occupies 1 slot while the 8 channel module occupies 2 slots. Popular applications include point-to-point, used with passive OADMs for Drop and Continue/Insert, SONET/SDH, Gigabit Ethernet aggregation, ESCON/FICON/Fibre Channel aggregation, and much more. |
FEATURES OF
Canoga Perkins
Models 6004
& 6008
4 and 8
Channel CWDM
Passive Module, Requires No Power
Protocol Transparent
Utilizes Industry Standard ITU CWDM Wavelengths
Low Insertion Loss
Rapid Deployment of Services
4, 5, 8 and 9 Channels Over One Fiber Pair
Full Native Mode Performance
Easy Installation and Operation
UCS Rackmount
6002/3/4/8 Passive CWDM | ||
MODEL | DESCRIPTION | |
4 and 8 Channel CWDM MUX-DEMUX | ||
For use in EdgeAccess® UCS Model 1000 and Model 1001 Chassis or as Standalone | ||
6002-2012-2103 | 2 channel mux/demux, R/M, 1310/1550nm | |
6002-2012-2403 | 2 channel mux/demux, R/M, 1510/1550nm | |
6003-2012-3303 | 3 channel mux/demux, R/M, 1310/1510/1550nm | |
6003-2012-3403 | 3 channel mux/demux, R/M, 1510/1530/1550nm | |
6004-2012-3903 | 4 channel mux/demux, R/M, 1510/1530/1550/1570nm | |
6004-2012-3703 | 4 channel mux/demux, R/M, 1510/1530/1550/1570 + 1310nm | |
6004-1012-3903 | 4 channel mux/demux, S/A, 1510/1530/1550/1570nm | |
6008-2012-3803 |
8 channel mux/demux, R/M, 1470/1490/1590/1610/ 1510/1530/1550/1570 |
|
|
8 channel mux/demux, R/M, 1470/1490/1590/1610/ 1510/1530/1550/1570 + 1310nm |
|
Connector type | ||
3 = SC Duplex |
